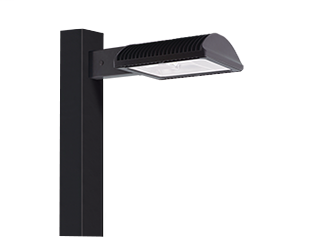

RAB ALED4T105Y/PC2 ALED105 T IV 8"
$1,280.62/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # ALED4T105Y/PC2
North Coast Part # 1101128

LED Info

  • L70 Lifespan: 100,000
  • Watts: 105W
  • Color Temp: 3000K (Warm)
  • Lumens: 8,461
  • Efficacy: 80 LPW
  • Color Accuracy: 81 CRI

Driver Info

  • 277V: 0.44A
  • 208V: 0.58A
  • Efficiency: 99
  • Type: Constant Current
  • 240V: 0.50A
  • Input Watts: 106W

Technical Specifications

Listings

  • DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
  • UL Listing: Suitable for wet locations.
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaries have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have been received the Department of Energy "Lighting Facts" label.
  • Dark Sky Approved: The International Dark Sky Association has approved this product as a full cutoff, fully shielded luminaire.

Construction

  • Effective Projected Area: EPA = 0.75
  • IES Classification: The Type IV distribution (also known as a Forward Throw) is especially suited for mounting on the sides of buildings and walls, and for illuminating the perimeter of parking areas. It produces a semiCircular distribution with essentially the same candlepower at lateral angles from 90° to 270°.
  • Ambient Temperature: Suitable for use in 40°C (104°F) ambient temperatures.
  • Cold Weather Starting: The minimum starting temperature is -40°F/-40°C.
  • Mounting: Heavy-duty mounting arm with "O" ring seal & stainless steel screws
  • For use on LEED Buildings: IDA Dark Sky Approval means that this fixture can be used to achieve LEED Credits for Light Pollution Reduction.
  • Green Technology: Mercury and UV free, and RoHS compliant. Polyester powder coat finish formulated without the use of VOC or toxic heavy metals.
  • Housing: Die-cast aluminum housing, lens frame and mounting arm.
  • Thermal Management: Superior thermal management with external Air-Flow fins.
  • Reflector: Specular vacuum-metallized polycarbonate
  • Gaskets: High-temperature silicone gaskets
  • Finish: Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contains no VOC or toxic heavy metals.

Electrical

  • Surge Protection: 4kV
  • THD: 7.6% at 120V, 16.2% at 277V

Optical

  • BUG Rating: B1 U0 G2

LED Characteristics

  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5 year period.
  • LEDs: Multi-chip, high-output, long-life LEDs
  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2011.

Other

  • Trade Agreements Act Compliant: This product is a COTS item manufactured in the United States, and is compliant with the Trade Agreements Act.
  • Buy American Act Compliant: This product is a COTS item manufactured in the United States, and is compliant with the Buy American Act.
  • California Title 24: ALED4T105/PC2 with the button photocell (277V) option complies with 2013 California Title 24 building and electrical codes as a commercial outdoor pole-mounted fixture > 75 Watts at mounting heights greater than 24 feet.
  • GSA Schedule: Suitable in accordance with FAR Subpart 25.4.
  • Drivesr: Two Drivers, Constant Current, Class 2, 1400mA, 100-277V, 50/60Hz, 0.8A, Power Factor 99%
  • Country of Origin: Designed by RAB in New Jersey and assembled in the USA by RAB's IBEW Local 3 workers.
  • Recovery Act (ARRA) Compliant: This product complies with the 52.225-21 "Required Use of American Iron, Steel, and Manufactured Goods-- Buy American Act-- Construction Materials (October 2010).
  • ALED4T105 with Photocell: 277V Button Photocell Included. Photocell is compatible with 208V-277V.
  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. See our full warranty here.

Color

  • Color: Bronze

Dimensions

  • Weight: 32.0 lbs

Documents

Overview

UPC 01981393824
GTiN 00019813938240
Finish Polyester Powder Coating
Warranty Length 5 yr
Color Bronze
Voltage 208-277 Volt
Type Constant Current
Applications OUTDOOR
Weight 32.0 lb
Country of Origin USA
Wattage 105 Watt
Color Temperature 3000 K
Color Accuracy 81 CRI
Lumens 8461 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Buy American Compliant Yes
Amperage 0.44 Amp
Average Rated Life 100000 hr
