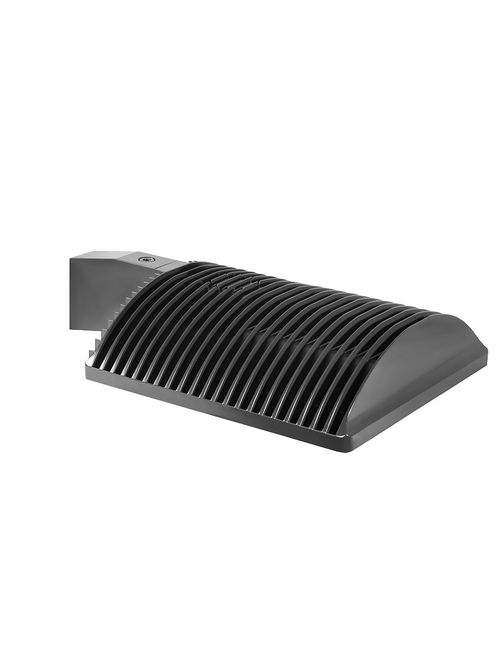

RAB ALED4T260/D10 ALED260 T IV 9" 5

$1,854.96/ea

Usually ships within 11 to 17 Days

Adding...

Already a Customer? Log in to view your pricing

Features

UL Listing: Suitable for wet locations
IESNA LM-79 & IESNA LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Dark Sky Conformance: Conforms to (allows for conformance to) the IDA's fully shielding requirement, emitting no light above 90 degrees (with the exclusion of incidental light reflecting from fixture housing, mounts, and pole).
DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: PWDXFUNP

Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
LEDs: Multi-chip, high-output, long-life LEDs
Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

IES Classification: The Type IV distribution (also known as a Forward Throw) is especially suited for mounting on the sides of buildings and walls, and for illuminating the perimeter of parking areas. It produces a semiCircular distribution with essentially the same candlepower at lateral angles from 90° to 270°.
Effective Projected Area: EPA = 1.2
Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
Thermal Management: Superior thermal management with external "Air-Flow" fins
Lens: Tempered glass lens included
Housing: Die cast aluminum with airflow fins for cooling
Mounting: Heavy-duty mounting arm with "O" ring seal & stainless steel screws
IP Rating: Ingress Protection rating of IP66 for dust and water
Reflector: Vacuum-metalized polycarbonate
Gaskets: High-temperature silicone gaskets
Finish: Formulated for high durability and long-lasting color
Green Technology: Mercury and UV free. RoHS-compliant components.

Drivers: Constant Current, Class 1, 1660mA, 100-277V, 50-60Hz, 120V: 2.2A, 208V: 1.3A, 240V: 1.1A, 277V: 1.0A
Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
Surge Protection: 4kV For areas prone to surges, upgrade to 10kV surge protection.

BAA Compliance: Click for BAA compliance.
Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
Equivalency: Equivalent to 875W Pulse Start Metal Halide
Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
