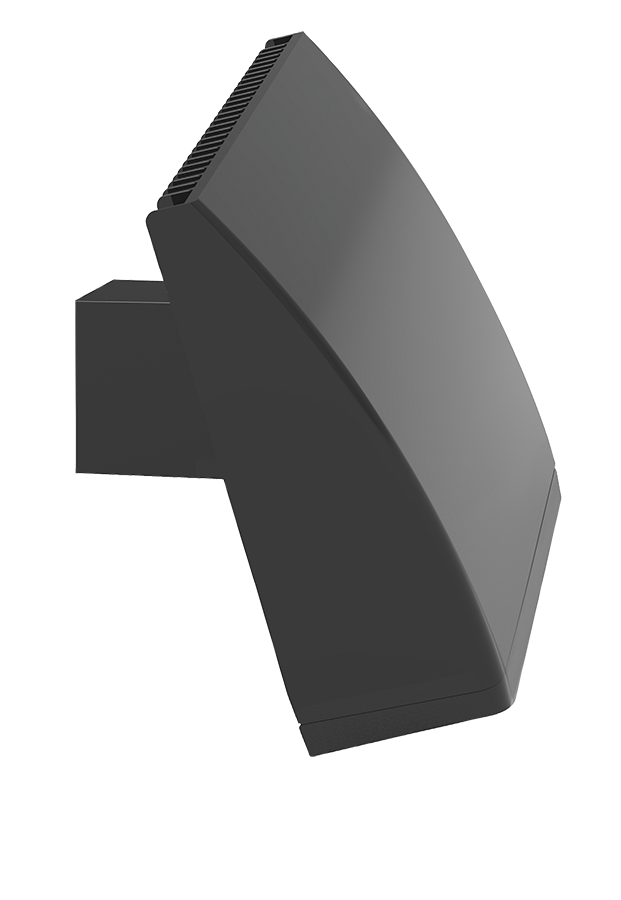

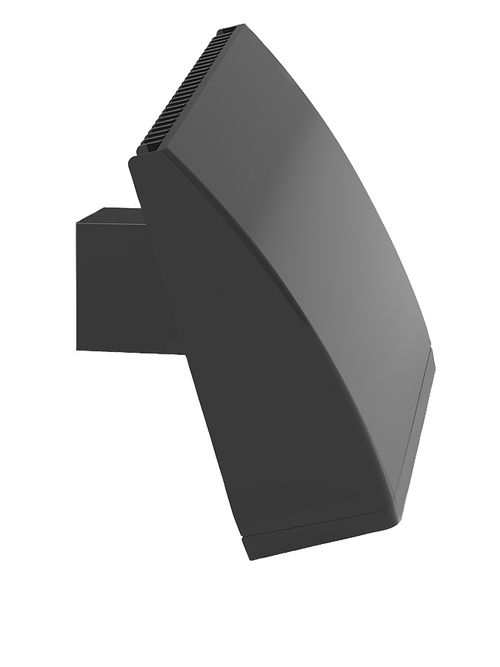

RAB ALED52N/PCS AREA LIGHT 52W NEUT
$820.65/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # ALED52N/PCS
North Coast Part # 819201

Features

  • 75% energy savings
  • Superior heat sinking with die cast aluminum housing and external fins
  • 100,000-hour LED lifespan
  • 5-Year, No-Compromise Warranty

Specifications

Performance

  • Watts: 52W
  • Color Temp: 4000K (Neutral)
  • Lumens: 7,320
  • Efficacy: 128.6 lm/W
  • Color Accuracy: 76 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.51A
  • Input Watts: 56.90W

Dimensions

  • Weight: 16.4 lbs

Electrical

  • Driver: Constant Current, 720mA, Class 2, 100 - 277V, 50 - 60 Hz, 100 - 277VAC .8 Amps.
  • THD: 7.64% at 120V, 5.72% at 277V
  • Power Factor: 99.1% at 120V, 97.5% at 277V
  • Photocell: 120V Swivel Photocell Included. Photocell is only compatible with 120V.
  • Surge Protection: 6kV

Listings

  • UL Listing: Suitable for wet locations. Suitable for mounting within 4 feet of the ground.
  • IESNA LM-79 & IESNA LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: P00001746

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

  • IES Classification: The Type IV distribution (also known as a Forward Throw) is especially suited for mounting on the sides of buildings and walls, and for illuminating the perimeter of parking areas. It produces a semiCircular distribution with essentially the same candlepower at lateral angles from 90° to 270°.
  • Ambient Temperature: Suitable For use in 40°C (104°F)
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Housing: Precision die cast aluminum housing, lens frame
  • Arm: Die-cast aluminum with wiring access plate
  • Reflector: Specular vacuum-metallized polycarbonate
  • Gaskets: High-temperature silicone
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.

Other

  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Patents: The WPLED design is protected by patents pending in the U.S., Canada, China, Taiwan and Mexico.
  • Equivalency: Equivalent to 250W Pulse Start Metal Halide
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Optical

  • BUG Rating: B0 U2 G3

Overview

UPC 01981315899
GTiN 00019813158990
Color 4000K (4000K Neutral)
Voltage 120 Volt
Type AREALIGHTS
Mounting Type 20
Weight 16.4 lb
Wattage 52 Watt
Color Temperature 4000 K
Color Accuracy 76 CRI
Lumens 7,320 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Amperage 0.51 Amp
Average Rated Life 100,000 hr
Input Wattage 56.90 W
Power Factor 97.5% At 277V,99.1% At 120V
Efficacy 128.6 LPW
Total Harmonic Distortion 7.64% At 120V,5.72% At 277V
Applications OUTDOOR
