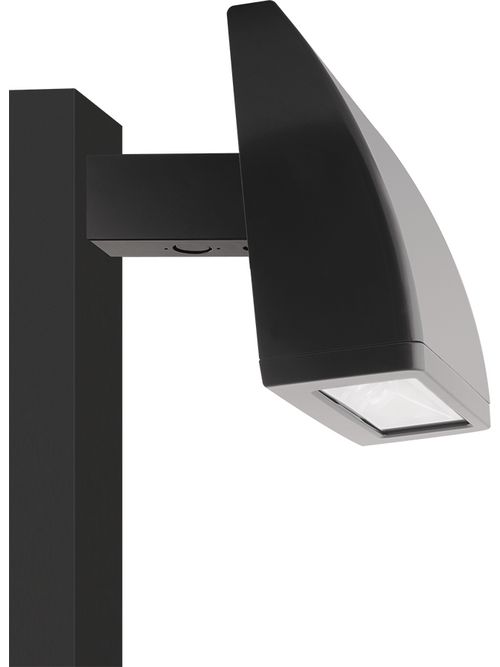

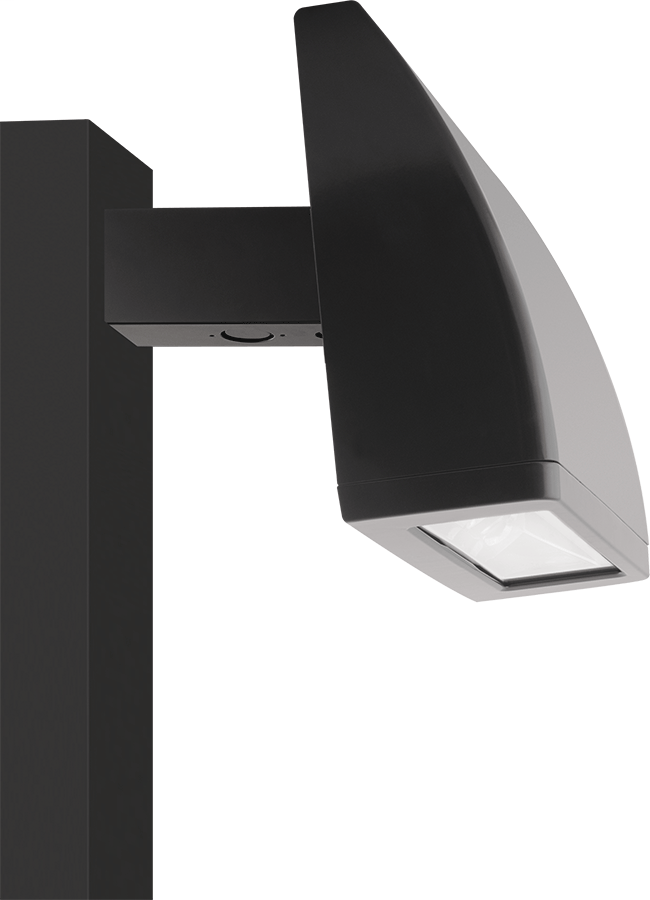

RAB ALEDC104N AREA 104W CUTOFF NEUT

Features

• 75% energy savings
• Superior heat sinking with die cast aluminum housing and external fins
• 100,000-hour LED lifespan
• 5-Year, No-Compromise Warranty

Specifications

Performance

• Watts: 104W
• Color Temp: 4000K (Neutral)
• Lumens: 14,411
• Efficacy: 131.5 lm/W
• Color Accuracy: 74 CRI
• L70 Lifespan: 100,000 hours
• Type: Constant Current
• 120V: 0.95A
• 208V: 0.59A
• 240V: 0.51A
• 277V: 0.44A
• Input Watts: 109.60W

Dimensions

• Weight: 29.2 lbs

Listings

• UL Listing: UL Suitable for Wet Locations as Uplight and Downlight
• IESNA LM-79 & IESNA LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
• DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: P000017BG

Construction

• IP Rating: Ingress Protection rating of IP66 for dust and water
• Cutoff Mount: Cutoff 7.5° mount. Die-cast aluminum wall bracket with (5) 1/2" conduit openings with plugs. Two piece bracket with tether for ease of installation and wiring.
• Effective Projected Area: EPA = 2.0
• Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
• Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
• Housing: Precision die cast aluminum housing, lens frame
• Arm: Die-cast aluminum with wiring access plate
• Lens: Tempered glass
• Reflector: Specular vacuum metallized polycarbonate
• Gaskets: High-temperature silicone
• Finish: Formulated for high durability and long-lasting color
• Green Technology: Mercury and UV free. RoHS-compliant components.

LED Characteristics

• LEDs: Four multi-chip, high-output, long-life LEDs
• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
• Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
• Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
• Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377.2011.

Other

• Equivalency: Equivalent to 400W Pulse Start Metal Halide
• Patents: The design of the ALED104 is protected by patents pending in US, Canada, China, Taiwan and Mexico
• Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
• Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Optical

• BUG Rating: B1 U1 G2

Electrical

• Driver: Constant current, Class 1, 100-277V, 50/60 Hz, 4kV Surge Protection, 700mA, 100-277V = Power Factor 99.6%.
• THD: 4.63% at 120V, 6.28% at 277V
• Power Factor: 99.7% at 120V, 92.4% at 277V
