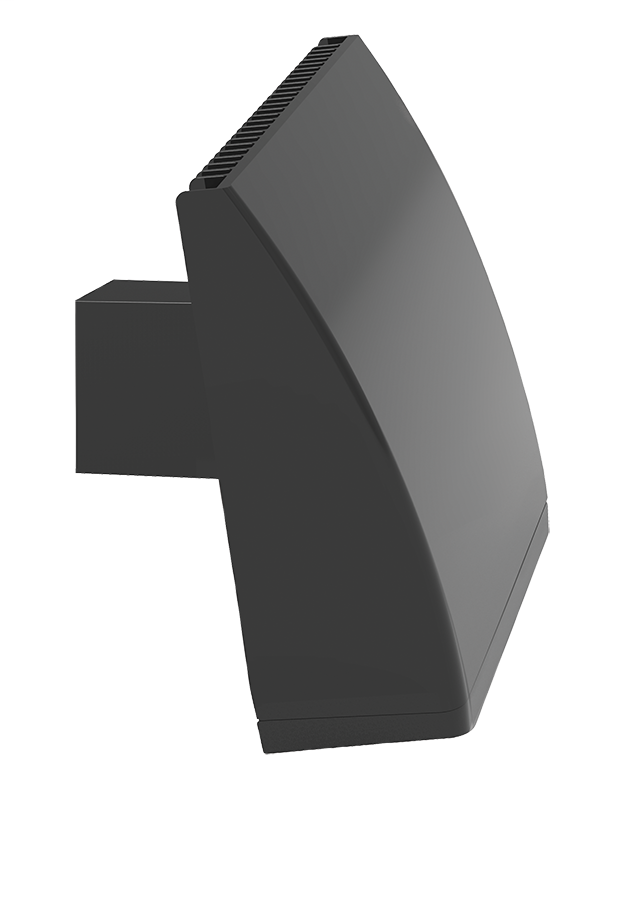

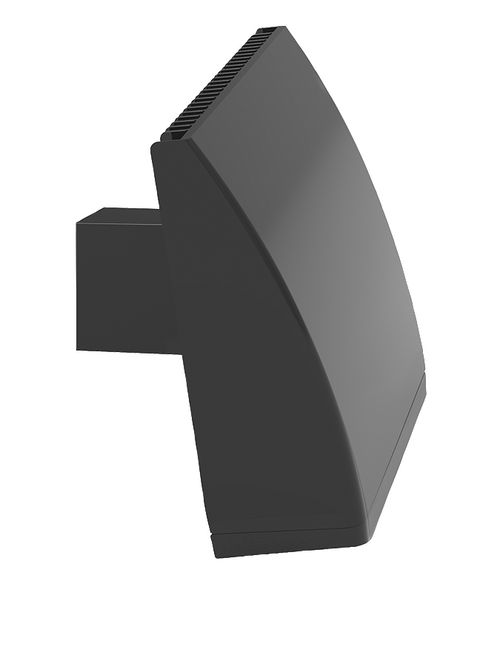

RAB ALEDC52N LED AREA LIGHT 52W CUT
$820.65/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # ALEDC52N
North Coast Part # 1018152

Features

  • 75% energy savings
  • Superior heat sinking with die cast aluminum housing and external fins
  • 100,000-hour LED lifespan
  • 5-Year, No-Compromise Warranty

Specifications

Performance

  • Watts: 52W
  • Color Temp: 4000K (Neutral)
  • Lumens: 7,334
  • Efficacy: 130 lm/W
  • Color Accuracy: 76 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0
  • 208V: 0
  • 240V: 0
  • 277V: 0
  • Input Watts: 56.40W

Dimensions

  • Weight: 16.4 lbs

Listings

  • UL Listing: Suitable for wet locations. Suitable for mounting within 4 feet of the ground.
  • IESNA LM-79 & IESNA LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: P0000173F

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • LEDs: Two (2) multi-chip, high-output, long-life LEDs
  • Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

  • IES Classification: The Type III distribution is ideal for roadway, general parking and other area lighting applications where a larger pool of lighting is required. It is intended to be located near the side of the area, allowing the light to project outward and fill the area.
  • Ambient Temperature: Suitable For use in 40°C (104°F)
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Housing: Precision die cast aluminum housing, lens frame
  • Arm: Die-cast aluminum with wiring access plate
  • Reflector: Specular vacuum-metallized polycarbonate
  • Gaskets: High-temperature silicone
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.

Electrical

  • Driver: Constant Current, 720mA, Class 2, 100 - 277V, 50 - 60 Hz, 100 - 277VAC .8 Amps.
  • THD: 5.73% at 120V, 8.02% at 277V
  • Power Factor: 99.1% at 120V, 97.3% at 277V
  • Surge Protection: 6kV

Other

  • Patents: The WPLED design is protected by patents pending in the U.S., Canada, China, Taiwan and Mexico.
  • Equivalency: Equivalent to 250W Pulse Start Metal Halide
  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Optical

  • BUG Rating: B1 U1 G1

Overview

UPC 01981302928
GTiN 00019813029283
Finish Bronze
Voltage 100-240 Volt
Type AREA Light
Applications OUTDOOR
Mounting Type 20
Weight 16.4 lb
Wattage 52 Watt
Color Temperature 4000 K
Color Accuracy 76 CRI
Lumens 7,334 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Fixture Type LED Area Lights
Average Rated Life 100,000 hr
Input Wattage 56.40 W
Power Factor 99.1% At 120V,97.3% At 277V
Efficacy 130 LPW
Total Harmonic Distortion 5.73% At 120V,8.02% At 277V
