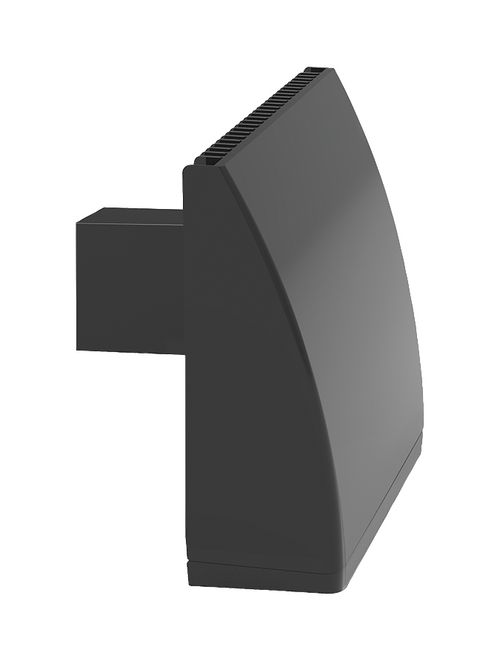

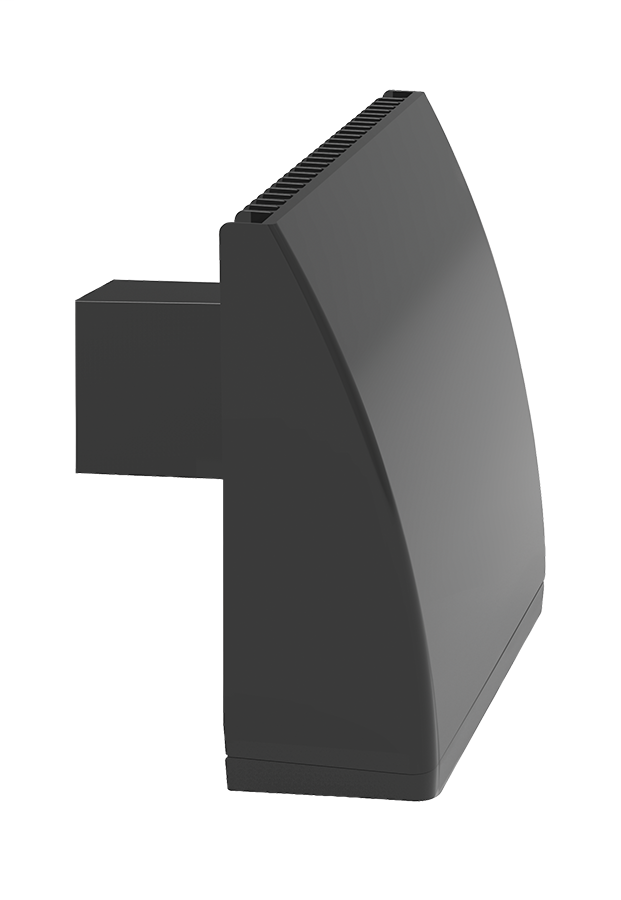

RAB ALEDFC80N AREA LIGHT 80W FULL C
$846.79/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # ALEDFC80N
North Coast Part # 1685027

Features

  • 75% energy savings
  • Superior heat sinking with die cast aluminum housing and external fins
  • 100,000-hour LED lifespan
  • 5-Year, No-Compromise Warranty

Specifications

Performance

  • Watts: 80W
  • Color Temp: 4000K (Neutral)
  • Lumens: 9,945
  • Efficacy: 121 lm/W
  • Color Accuracy: 76 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.71A
  • 208V: 0.41A
  • 240V: 0.36A
  • 277V: 0.31A
  • Input Watts: 82.20W

Dimensions

  • Weight: 16.4 lbs

Listings

  • UL Listing: Suitable for wet locations. Suitable for mounting within 4 feet of the ground.
  • IESNA LM-79 & IESNA LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: PZXXVZPE

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • LEDs: Two (2) multi-chip, high-output, long-life LEDs
  • Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

  • IES Classification: The Type III distribution is ideal for roadway, general parking and other area lighting applications where a larger pool of lighting is required. It is intended to be located near the side of the area, allowing the light to project outward and fill the area.
  • Ambient Temperature: Suitable For use in 40°C (104°F)
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Thermal Management: Cast aluminum Thermal Management system for optimal heat sinking. The ALED is designed for cool operation, most efficient output and maximum LED life by minimizing LED junction temperature.
  • Effective Projected Area: EPA = 1.5
  • Housing: Precision die cast aluminum housing, lens frame
  • Arm: Die-cast aluminum with wiring access plate
  • Reflector: Specular vacuum-metallized polycarbonate
  • Gaskets: High-temperature silicone
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.

Electrical

  • Drivers: Constant Current, Class 2, 2000mA, 100-277V, 50-60Hz, 1.1A, Power Factor 99%
  • THD: 6.39% at 120V, 10.26% at 277V
  • Power Factor: 99.5% at 120V, 93.5% at 277V
  • Surge Protection: 6kV

Other

  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Patents: The WPLED design is protected by patents pending in the U.S., Canada, China, Taiwan and Mexico.
  • Equivalency: Equivalent to 320W Pulse Start Metal Halide
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Optical

  • BUG Rating: B1 U0 G1

Overview

UPC 01981321284
GTiN 00019813212845
Color 4000K (4000K Neutral)
Voltage 120-277 Volt
Type AREALIGHTS
Mounting Type 20
Weight 16.4 lb
Wattage 80 Watt
Color Temperature 4000 K
Color Accuracy 76 CRI
Lumens 9,945 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Amperage 0.36 Amp
Average Rated Life 100,000 hr
Input Wattage 82.20 W
Power Factor 99.5% At 120V,93.5% At 277V
Efficacy 121 LPW
Total Harmonic Distortion 6.39% At 120V,10.26% At 277V
Applications OUTDOOR
