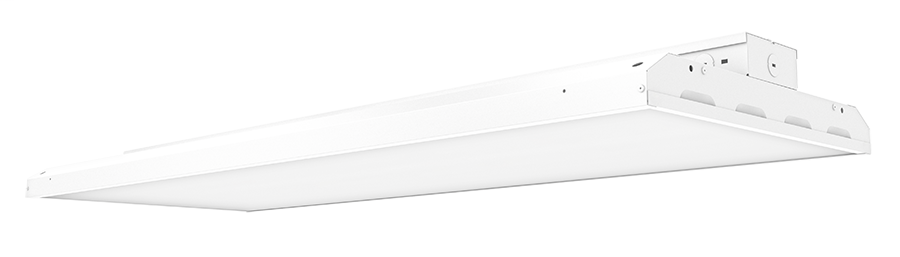

RAB ARBAY4-260N AEROBAY 4FT 260W 4K
$581.39/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # ARBAY4-260N
North Coast Part # 1686752

Features

  • High efficiency. Low price.
  • Available with factory-installed Lightcloud controls
  • Ideal for industrial warehouse spaces
  • 50,000 hour LED lifespan
  • 5-Year, Limited Warranty

Specifications

Performance

  • Watts: 260W
  • Color Temp: 4000K (Neutral)
  • Lumens: 36,181
  • Efficacy: 136 lm/W
  • Color Accuracy: 84 CRI
  • L70 Lifespan: 50,000 hours
  • Type: Constant Current
  • 120V: 2.17A
  • 208V: 1.29A
  • 240V: 1.12A
  • 277V: 0.93A
  • Input Watts: 266.10W

Dimensions

  • Weight: 26.7 lbs

Listings

  • UL Listed: Suitable for damp locations
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: PDUFNMLE

LED Characteristics

  • Lifespan: 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • LEDs: Long-life, high-efficiency, surface mount LEDs
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Electrical

  • Driver: Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 2.17A, 208V: 1.29A, 240V: 1.12A, 277V 0.93A
  • Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
  • THD: 7.1% at 120V, 8.4% at 277V
  • Power Factor: 99.5% at 120V, 96.9% at 277V
  • Surge Protection: 4kV

Construction

  • Operating Temperature: -20°C (-4°F) - 55°C (131°F)
  • Housing: Die formed painted steel
  • Lens: Diffused Polymethyl Methacrylate (PMMA)
  • Mounting: V hooks and optional pendant mounting. AEROBAY™ comes with two 42" chains.
  • Finish: Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.

Other

  • Replacement: 260W replaces up to (8) F54T5
  • 5 Yr Limited Warranty: The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Categories

Overview

UPC 01981360584
GTiN 00019813605845
Finish Polyester Powder Coating
Operating Temperature -4 degrees F
Voltage 120/277 Volt
Type BAY Lighting
Applications INDOOR
Weight 26.7 lb
Wattage 260 Watt
Color Accuracy 84 CRI
Lumens 36,181 lm
Family Brand Name Rab Design Lighting
Amperage 0.93 Amp
Average Rated Life 50,000 hr
Input Wattage 266.10 W
Power Factor 96.9% At 277V,99.5% At 120V
Efficacy 136 LPW
Total Harmonic Distortion 7.1% At 120V,8.4% At 277V
