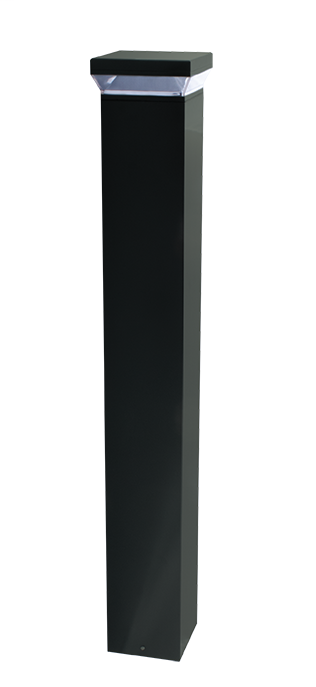

RAB BLED18Y LED SQUARE BOLLARD 42"
$964.39/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # BLED18Y
North Coast Part # 1008263

Features

  • Patented base mount design for super sturdy installation
  • Durable construction and frosted vandal-resistant polycarbonate lens
  • 4 configurations to provide 360°(24W), 270°(18W), 180°(12W) or 90°(12W) lighting pattern
  • Precision-engineered optics deliver maximum downward lighting without glare
  • Four leveling screws provided for easy installation
  • 100,000-hour LED lifespan

Specifications

Performance

  • Watts: 18W
  • Color Temp: 3000K (Warm)
  • Lumens: 1,609
  • Efficacy: 94.6 lm/W
  • Color Accuracy: 84 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.24A
  • 208V: 0.18A
  • 240V: 0.15A
  • 277V: 0.12A
  • Input Watts: 17.00W

Dimensions

  • Weight: 18.6 lbs

Listings

  • UL Listing: Suitable for wet locations. Suitable for mounting within 4 ft. (1.2m) of the ground.
  • IESNA LM-79 & IESNA LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: PO8D1U6X

LED Characteristics

  • LEDs: Long-life, high-efficiency, surface mount LEDs
  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • Color Consistency: 5-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017

Optical

  • BUG Rating: B1 U3 G1

Construction

  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Thermal Management: Cast aluminum Thermal Management system for optimal heat sinking. The BLED is designed for cool operation, maximum efficiency and long life by minimizing LED junction temperature.
  • Housing: Die-cast aluminum with extruded aluminum post
  • Lens: Frosted vandal resistant polycarbonate
  • Reflector: vacuum-metalized polycarbonate
  • Mounting: Four (4) anchor bolts provided for concrete pad mounting. Internal base support has leveling screws.
  • Gaskets: High-temperature silicone gaskets seal out moisture gaskets seal out moisture
  • Anchor Bolt: Anchor Bolt Dimension is available
  • Finish: Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.

Other

  • Patents: The design of BLED is protected by patents in US, Canada & China
  • Replacement: Replaces up to 50W Metal Halide
  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Electrical

  • Driver: Constant Current, Class 2, 100-277V, 50/60 Hz, 4kV Surge Protection, 700mA, 120V: 0.24A, 208V: 0.18A, 240V: 0.15A, 277V: 0.12A
  • THD: 6.4% at 120V, 10.6% at 277V
  • Power Factor: 99.5% at 120V, 89.9% at 277V

Categories

Overview

UPC 01981310326
GTiN 00019813103266
Finish Polyester Powder Coating
Voltage 120-277 Volt
Type BOLLARD
Applications OUTDOOR
Weight 18.6 lb
Wattage 18 Watt
Color Temperature 3000 K
Color Accuracy 84 CRI
Lumens 1,609 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Amperage 0.12 Amp
Average Rated Life 100,000 hr
Input Wattage 17.00 W
Power Factor 89.9% At 277V,99.5% At 120V
Efficacy 94.6 LPW
Total Harmonic Distortion 10.6% At 277V,6.4% At 120V
