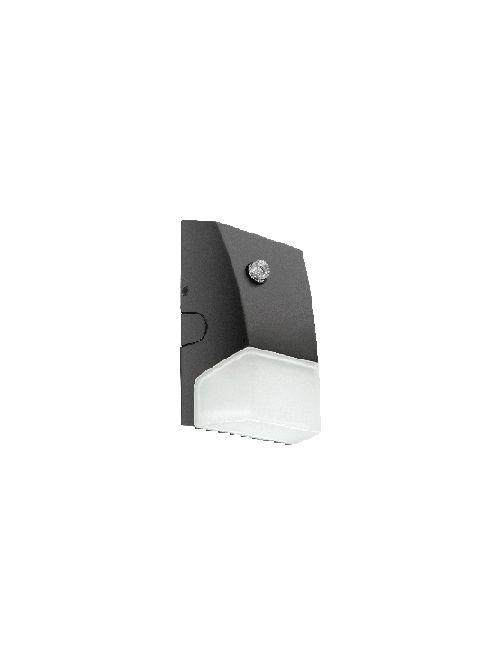

RAB BRISK8/PCU BRISKWALL 8W 5K 120-
Product image thumbnail 0
Product image thumbnail 1
$193.41/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # BRISK8/PCU
North Coast Part # 1760306

Features

  • Economical
  • Traditional non-cutoff design
  • 60,000-hour LED lifespan
  • 5-Year limited warranty

Specifications

  • Color: Bronze

LED Info

  • Watts: 8W
  • Color Temp: 5000K
  • Color Accuracy: 74 CRI
  • L70 Lifespan: 60000
  • Lumens: 998
  • Efficacy: 112 LPW

Driver Info

  • Type: Constant Current
  • 120V: 0.07A
  • 208V: 0.05A
  • 240V: 0.04A
  • 277V: 0.03A
  • Input Watts: 9W

Dimensions

  • Weight: 2.0 lbs

Listings

  • UL Listing: Suitable for wet locations.
  • DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaries have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have been received the Department of Energy "Lighting Facts" label.

LED Characteristics

  • Lifespan: 60,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
  • LEDs: Long-life, high-efficiency surface mounting LEDs
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2015.
  • Replacement: Replaces 75A/IF incandescent Inside Frost or 13W CFL.

Electrical

  • Driver: Constant Current, Class 2, 50/60Hz, 120V: 0.07A, 208V: 0.05A, 240V: 0.04A, 277V: 0.03A
  • Surge Protection: 2.5KV
  • THD: 9.4% at 120V, 20.1% at 277V
  • Power Factor: 99.2% at 120V, 88.4% at 277V

Construction

  • IP Rating: Ingress Protection rating of IP66 for dust and water
  • Maximum Ambient Temperature: SuitableFor use in 40°C (104°F) ambient temperatures
  • Cold Weather Starting: The minimum starting temperature is -30°C (-22°F).
  • Housing: Precision die-cast aluminum.
  • Reflector: Specular
  • Lens: Diffused acrylic
  • Mounting: Heavy duty, die-cast junction box with four (4) conduit entries (one top, two side, one back).
  • Gasket: Silicone foam
  • Finish: Formulated for high-durability and long lasting color.
  • Green Technology: Mercury and UV free. RoHS compliant components. Polyester powder coat finish formulated without the use of VOC or toxic heavy metals.

Optical

  • BUG Rating: B0 U3 G1

Other

  • Photocell: 120-277V Button Photocell Included. Photocell is compatible with 120V-277V.
  • 5 Yr Limited Warranty: RAB warrantees fixture operation and paint finish for a period of 5 years.
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Overview

UPC 01981349641
GTiN 00019813496412
Finish Bronze
Color Bronze
Voltage 120/277 Volt
Type WALLPACK
Applications OUTDOOR
Weight 2.0 lb
Wattage 8 Watt
Color Temperature 5000 K
Color Accuracy 74 CRI
Family Brand Name Rab Design Lighting
Input Wattage 9 W
Efficacy 112 LPW
