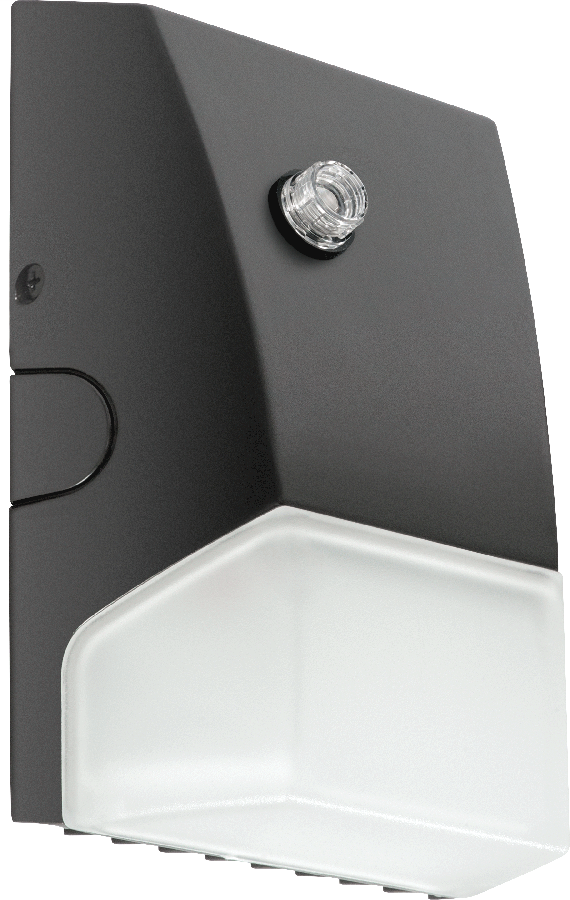

RAB BRISKS17L-740/PCU BRISK 1700LM

Features

• Economical
• Traditional non-cutoff design
• 60,000-hour LED lifespan
• 5-Year, Limited Warranty

Specifications

Performance

• Watts: 14W
• Color Temp: 4000K (Neutral)
• Lumens: 1,729
• Efficacy: 126.2 lm/W
• Color Accuracy: 72 CRI
• L70 Lifespan: 60,000 hours
• Type: Constant Current
• 120V: 0.11A
• 208V: 0.07A
• 240V: 0.06A
• 277V: 0.05A
• Input Watts: 13.70W

Dimensions

• Weight: 2.0 lbs

Listings

• UL Listing: Suitable for wet locations
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
• DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: PV15SJYR

LED Characteristics

• Lifespan: 60,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
• LEDs: Long-life, high-efficacy surface mount LEDs
• Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Electrical

• Driver: Constant Current, Class 2, 50/60Hz, 120V: 0.11A, 208V: 0.07A, 240V: 0.06A, 277V: 0.05A
• THD: 11.8% at 120V, 17.8% at 277V
• Power Factor: 99.3% at 120V, 91% at 277V
• Surge Protection: 2.5KV
• Photocell: 120-277V Button Photocell Included. Photocell is compatible with 120V-277V.

Construction

• IP Rating: Ingress Protection rating of IP66 for dust and water
• Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
• Cold Weather Starting: The minimum starting temperature is -30°C (-22°F)
• Housing: Precision die-cast aluminum
• Reflector: Specular
• Lens: Diffused acrylic
• Mounting: Heavy duty, die-cast junction box with four (4) conduit entries (one top, two side, one back)
• Gasket: Silicone foam
• Finish: Formulated for high durability and long-lasting color
• Green Technology: Mercury and UV free. RoHS-compliant components.

Optical

• BUG Rating: B0 U3 G2

Other

• 5 Yr Limited Warranty: The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at
• Replacement: Replaces 100A/IF incandescent Inside Frost, 100W T5 Halogen incandescent or 26W CFL
• Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
