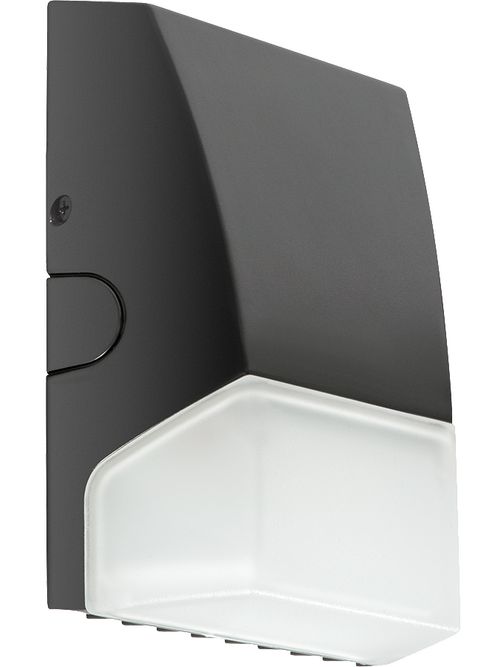

RAB BRISKS17L BRISK 1700LM SM 5000K
$180.33/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # BRISKS17L
North Coast Part # 1834157

Features

  • Economical
  • Traditional non-cutoff design
  • 60,000-hour LED lifespan
  • 5-Year, Limited Warranty

Specifications

Performance

  • Watts: 14W
  • Color Temp: 5000K (Cool)
  • Lumens: 1,765
  • Efficacy: 130.7 lm/W
  • Color Accuracy: 75 CRI
  • L70 Lifespan: 60,000 hours
  • Type: Constant Current
  • 120V: 0.11A
  • 208V: 0.07A
  • 240V: 0.06A
  • 277V: 0.05A
  • Input Watts: 13.50W

Dimensions

  • Weight: 2.0 lbs

Listings

  • UL Listing: Suitable for wet locations
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: PIKC3N2S

LED Characteristics

  • Lifespan: 60,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • LEDs: Long-life, high-efficacy surface mount LEDs
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Electrical

  • Driver: Constant Current, Class 2, 50/60Hz, 120V: 0.11A, 208V: 0.07A, 240V: 0.06A, 277V: 0.05A
  • THD: 11.3% at 120V, 17.8% at 277V
  • Power Factor: 99.3% at 120V, 90.9% at 277V
  • Surge Protection: 2.5KV

Construction

  • IP Rating: Ingress Protection rating of IP66 for dust and water
  • Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
  • Cold Weather Starting: The minimum starting temperature is -30°C (-22°F)
  • Housing: Precision die-cast aluminum
  • Reflector: Specular
  • Lens: Diffused acrylic
  • Mounting: Heavy duty, die-cast junction box with four (4) conduit entries (one top, two side, one back)
  • Gasket: Silicone foam
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.

Optical

  • BUG Rating: B0 U3 G2

Other

  • 5 Yr Limited Warranty: The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at
  • Replacement: Replaces 100A/IF incandescent Inside Frost, 100W T5 Halogen incandescent or 26W CFL
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Overview

UPC 01981377126
GTiN 00019813771267
Finish BRONZE
Voltage 120/277 Volt
Type WALLPACK
Applications OUTDOOR
Weight 2.0 lb
Wattage 14 Watt
Color Temperature 5000 K
Color Accuracy 75 CRI
Lumens 1,765 lm
Family Brand Name Rab Design Lighting
Amperage 0.07 Amp
Average Rated Life 60,000 hr
Input Wattage 13.50 W
Power Factor 99.3% At 120V,90.9% At 277V
Efficacy 130.7 LPW
Total Harmonic Distortion 17.8% At 277V,11.3% At 120V
