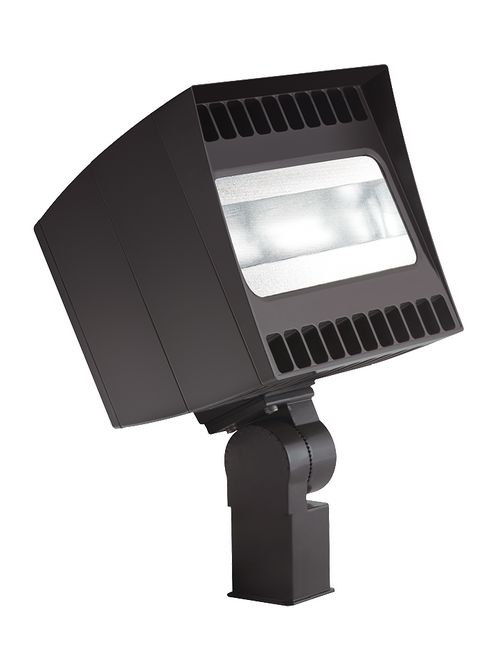

RAB CANVAS78SFY/PC FLOOD 78W 3K 6HX

Features

• Replaces 250W MH Floodlights
• NEMA Type 6H x 4V ideal for signage & facades
• Ultra-low field-to-beam ratio concentrates light where it's required
• Microprismatic diffusion lens optimizes light output without glare
• Superior thermal management with patent-pending "Airflow" technology
• 100,000-Hour LED lifespan

Specifications

Performance

• Watts: 78W
• Color Temp: 3000K (Warm)
• Lumens: 9,656
• Efficacy: 106.5 lm/W
• Color Accuracy: 70 CRI
• L70 Lifespan: 100,000 hours
• Type: Constant Current
• 120V: 0.82A
• Input Watts: 90.70W

Dimensions

• Weight: 26.6 lbs

Electrical

• Drivers: Constant current, Class 2, 100-277V, 50/60 Hz, 6kV Surge Protection, 720mA, 100-277V: 0.4A, THD <20%, Power Factor 99.8%
• Photocell: 120V Button Photocell Included. Photocell is only compatible with 120V.
• Note: All values are typical (tolerance +/- 10%)

Listings

• UL Listing: Suitable for wet locations. Suitable for ground mounting.
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
• DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: P6G5VKA2

Construction

• IP Rating: Ingress Protection rating of IP66 for dust and water
• Effective Projected Area: EPA = 1.2
• Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
• Ambient Temperature: Suitable For use in 40°C (104°F)
• Thermal Management: Superior thermal management with external Air-Flow fins
• Housing: Precision die-cast aluminum housing and door frame
• Mounting: 2 3/8" slipfitter mount with stainless steel hardware
• Lens: Microprismatic diffusion lens for smooth and even light distribution
• Reflector: Vacuum-metalized, specular polycarbonate
• Gaskets: High-temperature silicone
• Finish: Formulated for high durability and long-lasting color
• Green Technology: Mercury and UV free. RoHS-compliant components.

LED Characteristics

• LEDs: Multi-chip, high-output, long-life LEDs
• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
• Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
• Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
• Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Optical

• NEMA Type: NEMA Beam Spread of 6H x 4V

Other

• Patents: The design of CANVAS is protected by pending patents in U.S., Canada, China, Taiwan and Mexico.
• Equivalency: Replaces 400W Metal Halide
• Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
• Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
