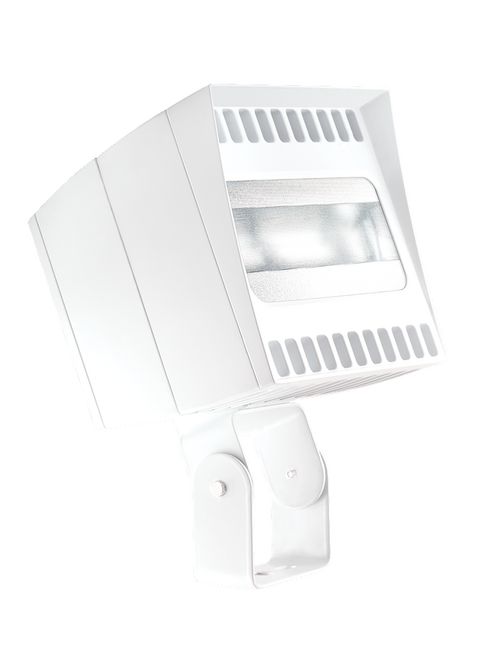

RAB CANVAS78TYW/PC FLOOD 78W WARM 6

$1,186.54/ea

Usually ships within 11 to 17 Days

Adding...

Already a Customer? Log in to view your pricing

Features

UL Listing: Suitable for wet locations. Suitable for ground mounting.
IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: P6G5VKA2

IP Rating: Ingress Protection rating of IP66 for dust and water
Effective Projected Area: EPA = 1.2
Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
Ambient Temperature: Suitable For use in 40°C (104°F)
Thermal Management: Superior thermal management with external Air-Flow fins
Housing: Precision die-cast aluminum housing and door frame
Mounting: Trunnion mount with cord (18-3AWG STOOW 600V 105° wet location rated 3 ft.).
Lens: Microprismatic diffusion lens for smooth and even light distribution
Reflector: Vacuum-metalized, specular polycarbonate
Gaskets: High-temperature silicone
Finish: Formulated for high durability and long-lasting color
Green Technology: Mercury and UV free. RoHS-compliant components.

Drivers: Constant current, Class 2, 100-277V, 50/60 Hz, 6kV Surge Protection, 720mA, 100-277V: 0.4A, THD <20%, Power Factor 99.8%
Note: All values are typical (tolerance +/- 10%)

LEDs: Multi-chip, high-output, long-life LEDs
Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Patents: The design of CANVAS is protected by patents in pending patents in U.S., Canada, China, Taiwan and Mexico.
Equivalency: Replaces 400W Metal Halide
Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
