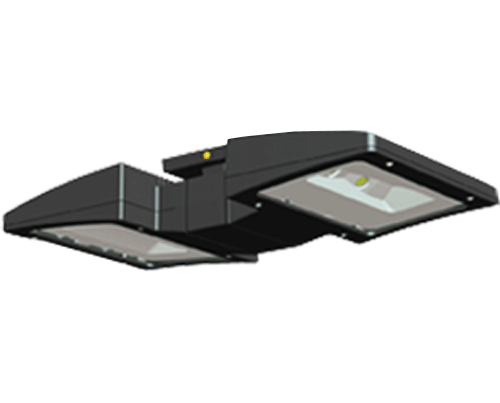

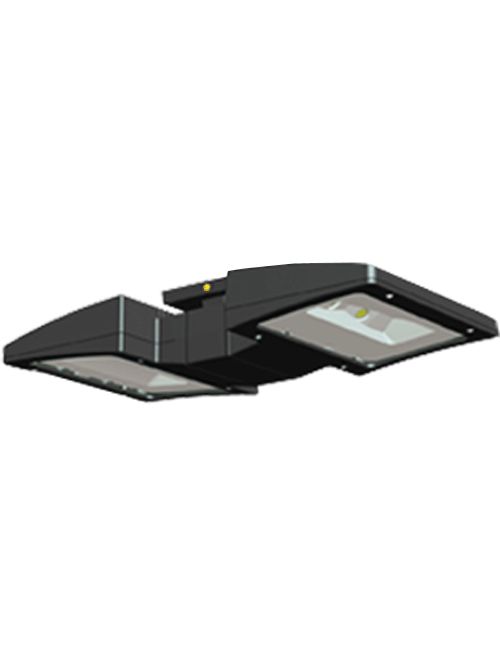

RAB CLED2X26N LED CEILING 2X26W NEU
$1,027.12/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # CLED2X26N
North Coast Part # 1013811

Features

  • Flush mount fixture bracket
  • Die cast aluminum lens frame with tempered glass and double gasketing
  • Fully Shielded, Full Cutoff Optics
  • LED Light Engine life delivers 70% of rated lumens at 100,000-hours

Specifications

Performance

  • Watts: 52W
  • Color Temp: 4000K (Neutral)
  • Lumens: 4,688
  • Efficacy: 79.3 lm/W
  • Color Accuracy: 82 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.48A
  • 208V: 0.30A
  • 240V: 0.26A
  • 277V: 0.22A
  • Input Watts: 59.10W

Dimensions

  • Weight: 9.5 lbs

Listings

  • UL Listing: Suitable for wet locations

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • Lumen Maintenance: The LED will deliver 70% of its initial lumens at 100,000 hours of operation
  • Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

  • Housing: Precision die cast aluminum housing, lens frame
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.
  • Mounting Accessory: Surface mounting box
  • Ambient Temperature: Suitable For use in 40°C (104°F)
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)

Other

  • Patents: The design of the CLED is protected by U.S. Patent D608,040, D615,689 , Canada Patent 821412 and patents pending in China, Taiwan and Mexico.
  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Equivalency: Equivalent to 175W Metal Halide
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Optical

  • BUG Rating: B2 U1 G1

Electrical

  • Driver: Multi-chip 26W high output long life LED Driver Constant Current, 720mA, Class 2, 6kV Surge Protection, 100V-277V, 50-60 Hz, 100-240V.4 Amps.

Overview

UPC 01981302733
GTiN 00019813027333
Finish Bronze
Voltage 277 Volt
Type ARCHITECTURAL
Applications INDOOR
Weight 9.5 lb
Wattage 52 Watt
Color Accuracy 82 CRI
Lumens 4,688 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Amperage 0.48 Amp
Average Rated Life 100,000 hr
Input Wattage 59.10 W
Efficacy 79.3 LPW
