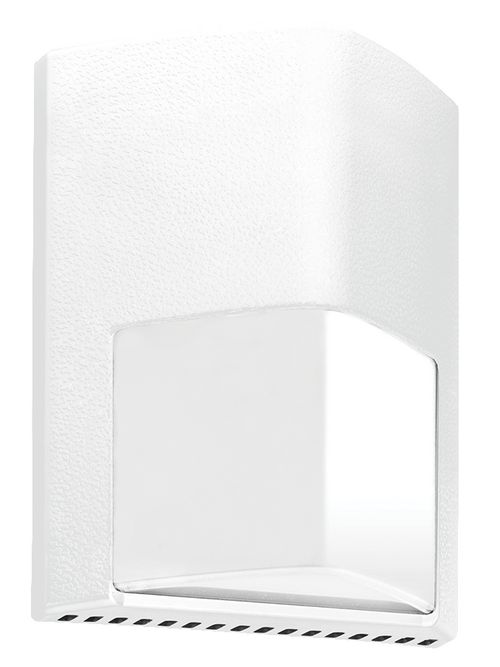

RAB ENTRA12W/PCS ENTRA 12W COOL120V
$245.68/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # ENTRA12W/PCS
North Coast Part # 1101495

Features

  • Save over $700 in energy costs over life of fixture
  • Equivalent to 70W high pressure sodium
  • Durable vandal-resistant polycarbonate housing
  • Low-profile and ADA compliant
  • 100,000-hour LED lifespan
  • 5-Year, No-Compromise Warranty

Specifications

Performance

  • Watts: 12W
  • Color Temp: 5000K (Cool)
  • Lumens: 1,284
  • Efficacy: 89.2 lm/W
  • Color Accuracy: 70 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.3A
  • Input Watts: 14.40W

Dimensions

  • Weight: 3.0 lbs

Electrical

  • Driver: Constant Current, Class 2, 100-277V, 50/60Hz, 4kV Surge Protection, 350mA, 100-240VAC: 0.3 - 0.15 A, 277VAC: 0.15 A, Power Factor: 98.5%.
  • THD: 9.9% at 120V
  • Photocell: 120V Swivel Photocell lncluded. Photocell is only compatible with 120V.

Listings

  • UL Listing: Suitable for wet locations as downlight. Suitable for mounting within 1.2m (4ft) of the ground.
  • ADA Compliant: ENTRA™ is ADA Compliant
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Construction

  • IP Rating: Ingress Protection rating of IP66 for dust and water
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
  • Back Housing: Die-cast aluminum
  • Lens/Housing Cover: Vandal resistant polycarbonate molded housing cover and lens
  • Mounting: Heavy die cast aluminum with 1/2" back knockout and mounting template for mounting to 4" box
  • Recommended Mounting Height: Up to 10 ft
  • Reflectors (2): White aluminum reflector topped with vacuum-metalized polycarbonate LED reflector
  • Gaskets: High-temperature silicone
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.

LED Characteristics

  • LED: 12W multi-chip, long life LED
  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Other

  • Patents: The design of the ENTRA™ is protected by patents pending in US, Canada, China, Taiwan and Mexico
  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Equivalency: Replaces 70W HPS
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Overview

UPC 01981310743
GTiN 00019813107431
Color 5000K (5000K Cool)
Voltage 120 Volt
Type WALLPACK
Weight 3.0 lb
Wattage 12 Watt
Color Temperature 5000 K
Color Accuracy 70 CRI
Lumens 1,284 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Amperage 0.3 Amp
Average Rated Life 100,000 hr
Input Wattage 14.40 W
Efficacy 89.2 LPW
Total Harmonic Distortion 9.9% At 120V
