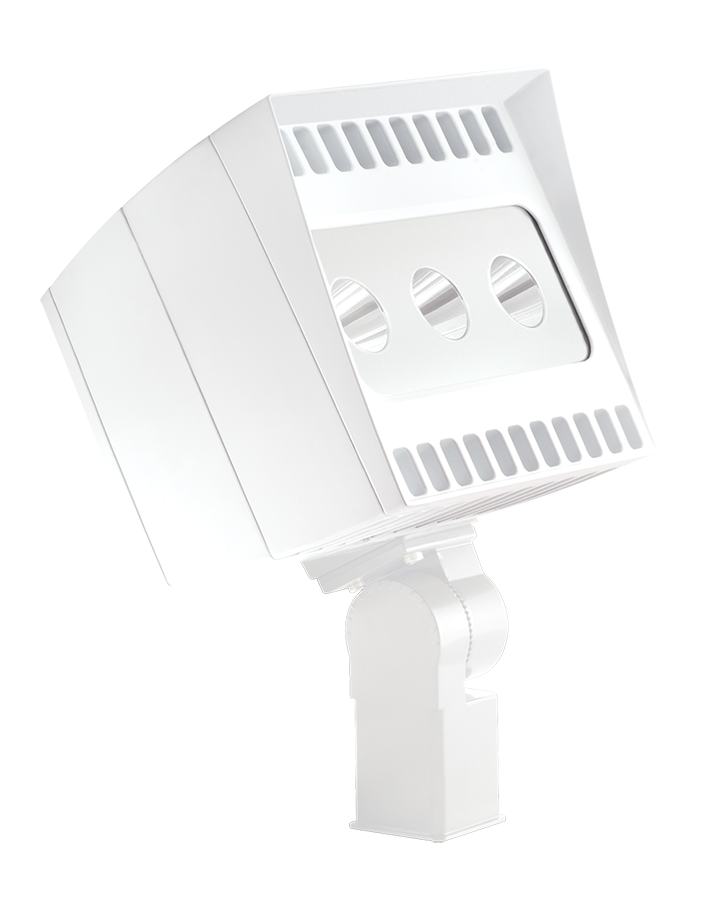

RAB EZLED78SFYW/PCS2 EZFLOOD 78W WA

Features

• High powered narrow beam spotlight
• Illuminates objects at a distance of 80 feet
• Available in NEMA type 3H x 3V and 4H x 4V
• Trunnion or slipfitter mounting options available
• Outperforms equivalent MH fixtures

Specifications

Performance

• Watts: 78W
• Color Temp: 3000K (Warm)
• Lumens: 8,743
• Efficacy: 96.4 lm/W
• Color Accuracy: 80 CRI
• L70 Lifespan: 100,000 hours
• Type: Constant Current
• 208V: 0.53A
• 240V: 0.46A
• 277V: 0.40A
• Input Watts: 90.70W

Dimensions

• Weight: 26.6 lbs

Electrical

• Driver: 3x26W drivers Constant current, Class2, 100-277V. 50/60 Hz, 6KV Surge Protection, 720mA, 100-277V 0.4A, Power Factor 99.1%.
• Photocell: 277V Swivel Photocell Included. Photocell is compatible with 208V-277V.
• Note: All values are typical (tolerance +/- 10%)

Listings

• UL Listing: Suitable for wet locations. Suitable for ground mounting.
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
• DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: PNH6DB6U

Construction

• Effective Projected Area: EPA = 1.2
• Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
• Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
• Thermal Management: Superior thermal management with external "Air-Flow" fins
• Housing: Precision die-cast aluminum housing and door frame
• Mounting: 2 3/8" slipfitter mount with stainless steel hardware
• Lens: Tempered glass
• Reflector: Vacuum-metalized, specular thermoplastic
• Gaskets: High-temperature silicone
• Finish: Formulated for high durability and long-lasting color
• Green Technology: Mercury and UV free. RoHS-compliant components.

LED Characteristics

• LEDs: Three multi-chip, high-output, long-life LEDs
• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
• Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
• Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
• Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Optical

• NEMA Type: Standard NEMA Beam 3H x 3V

Other

• Equivalency: Replaces 400W Metal Halide
• Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
• Patents: The design of EZLED is protected by patents in U.S. Pat D679,856, and pending patents in Canada, China, Taiwan and Mexico.
• Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
