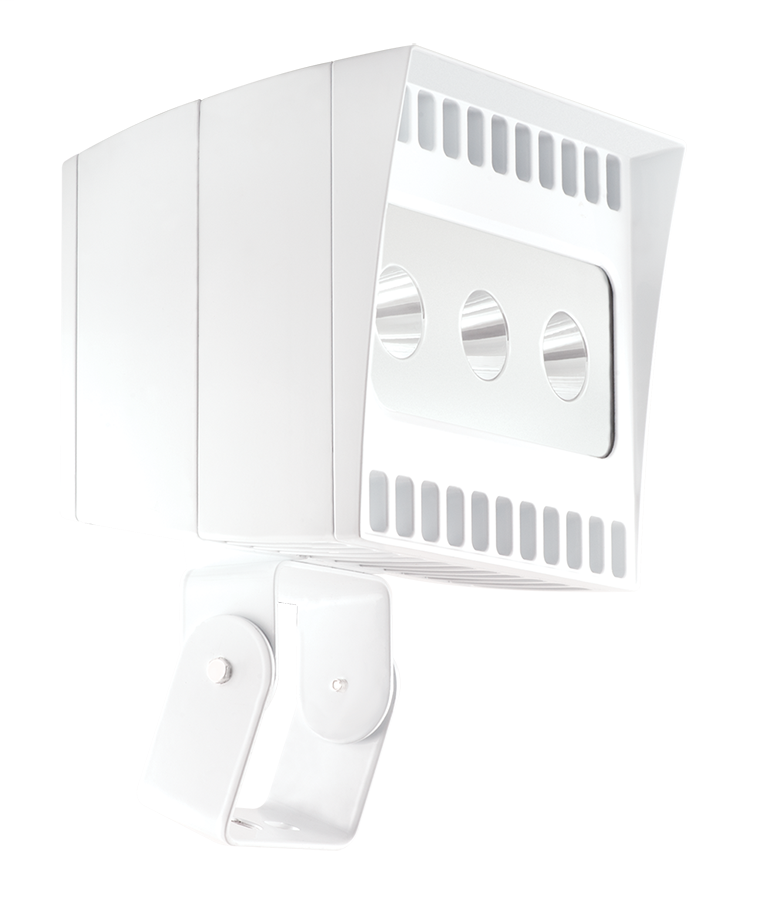

RAB EZLED78TW/PCS2 EZFLOOD 78W COOL

$1,082.00/ea

Usually ships within 11 to 17 Days

Adding...

Already a Customer? Log in to view your pricing

Features

Driver: 3x26W drivers Constant current, Class2, 100-277V. 50/60 Hz, 6KV Surge Protection, 720mA, 100-277V 0.4A, Power Factor 99%.
Photocell: 277V Swivel Photocell Included. Photocell is compatible with 208V-277V.
Note: All values are typical (tolerance +/- 10%)

UL Listing: Suitable for wet locations. Suitable for ground mounting.
IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: PW4XT25B

Effective Projected Area: EPA = 1.2
Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
Thermal Management: Superior thermal management with external "Air-Flow" fins
Housing: Precision die-cast aluminum housing and door frame
Mounting: Trunnion mount with cord (18-3AWG STOOW 600V 105° wet location rated 3 ft.).
Lens: Tempered glass
Reflector: Vacuum-metalized, specular thermoplastic
Gaskets: High-temperature silicone
Finish: Formulated for high durability and long-lasting color
Green Technology: Mercury and UV free. RoHS-compliant components.

LEDs: Three multi-chip, high-output, long-life LEDs
Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Equivalency: Replaces 400W Metal Halide
Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
Patents: The design of EZLED is protected by patents in U.S. Pat D679,856, and pending patents in Canada, China, Taiwan and Mexico.
Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
