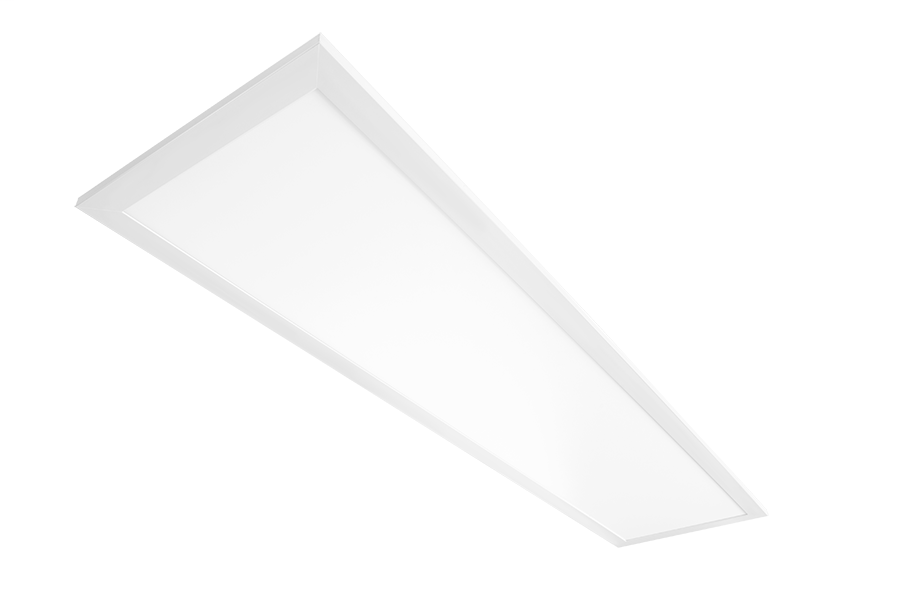

RAB EZPANHE1X4-30N/D10 EZ PANEL HE

$120.24/ea

Usually ships within 11 to 17 Days

Adding...

Already a Customer? Log in to view your pricing

Features

UL Listing: Suitable for damp locations
IESNA LM-79 & IESNA LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: P8WCHF0V

Driver: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.1A, 208V: 0.06A, 240V: 0.05A, 277V: 0.04A
Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
THD: 11.1% at 120V, 10.4% at 277V
Power Factor: 99.1% at 120V, 96.2% at 277V
Note: All values are typical (tolerance +/- 10%)

Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
LEDs: Long-life, High efficiency, micro-power, surface mount LEDs; binned and mixed for uniform light output and color
Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period

Maximum Ambient Temperature: Suitable for use in -30°C (-22°F) to 50°C(122°F)
IC Rating: Suitable for insulated ceilings
Lens: Frosted polystyrene
Mounting: Recessed ceiling
Housing: Lightweight aluminum housing, steel pan and junction box
Installation: Standard integral T-bar clips secure the fixture to T-bars and prevent T-system separation
Finish: Formulated for high durability and long-lasting color
Green Technology: Mercury and UV free. RoHS-compliant components.

Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
Equivalency: Equivalent to (4)F32T8 or (4)F28T5
Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
