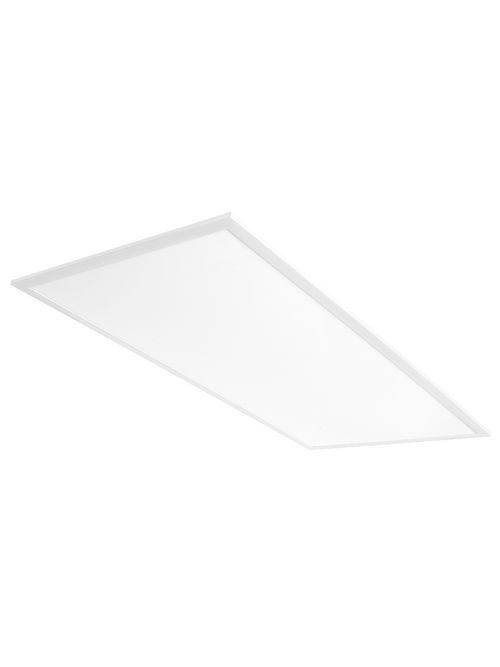

RAB EZPANHE2X4-46YN/D10 EZ PANEL HE
Product image thumbnail 0
Product image thumbnail 1
$153.99/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # EZPANHE2X4-46YN/D10
North Coast Part # 1687516

Features

  • Best in class efficacy
  • Innovative use of edge lit technology for glare-free lighting
  • 0-10V dimmable driver, standard

Specifications

Performance

  • Watts: 46W
  • Color Temp: 3500K (Warm Neutral)
  • Lumens: 6,009
  • Efficacy: 132.6 lm/W
  • Color Accuracy: 82 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.38A
  • 208V: 0.22A
  • 240V: 0.19A
  • 277V: 0.17A
  • Input Watts: 45.30W

Dimensions

  • Weight: 13.4 lbs

Listings

  • UL Listing: Suitable for damp locations
  • IESNA LM-79 & IESNA LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: P24LCQMP

Electrical

  • Driver: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.1A, 208V: 0.06A, 240V: 0.05A, 277V: 0.04A
  • Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
  • THD: 9.5% at 120V, 11.2% at 277V
  • Power Factor: 99.1% at 120V, 96.7% at 277V
  • Note: All values are typical (tolerance +/- 10%)

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • LEDs: Long-life, High efficiency, micro-power, surface mount LEDs; binned and mixed for uniform light output and color
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period

Construction

  • Maximum Ambient Temperature: Suitable for use in -30°C (-22°F) to 50°C(122°F)
  • IC Rating: Suitable for insulated ceilings
  • Lens: Frosted polystyrene
  • Mounting: Recessed ceiling
  • Housing: Lightweight aluminum housing, steel pan and junction box
  • Installation: Standard integral T-bar clips secure the fixture to T-bars and prevent T-system separation
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.

Other

  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Equivalency: Equivalent to (4)F32T8 or (4)F28T5
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Overview

UPC 01981370620
GTiN 00019813706207
Voltage 120/277 Volt
Type TROFFER
Applications INDOOR
Mounting Type Recessed Ceiling
Weight 13.4 lb
Wattage 46 Watt
Color Temperature 3500 K
Color Accuracy 82 CRI
Lumens 6009 lm
Family Brand Name Rab Design Lighting
Amperage 0.17 Amp
Average Rated Life 100,000 hr
Input Wattage 45.30 W
Power Factor 96.7% At 277V,99.1% At 120V
Efficacy 132.6 LPW
Total Harmonic Distortion 11.2% At 277V,9.5% At 120V
