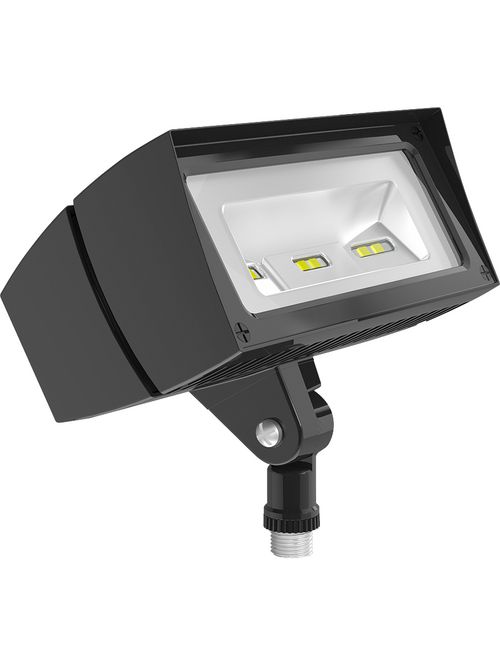

RAB FFLED18/PCS FUT.FLOOD 18W COOLD
$330.05/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # FFLED18/PCS
North Coast Part # 1101612

Features

  • Ultra-efficient LED and optical design
  • Replaces 70W MH floodlights
  • 100,000-hour life based on LM-80 results and TM-21 calculations
  • NEMA type - 7H x 6V
  • Air-Flow" technology heatsink
  • 5-Year, No-Compromise Warranty

Specifications

Performance

  • Watts: 18W
  • Color Temp: 5000K (Cool)
  • Lumens: 2,429
  • Efficacy: 123.3 lm/W
  • Color Accuracy: 71 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.2A
  • Input Watts: 19.70W

Dimensions

  • Weight: 4.8 lbs

Electrical

  • Driver: Constant Current, Class 2, 120V, 50 - 60 Hz, 120VAC 0.2 Amps.
  • THD: 11.89% at 120V
  • Power Factor: 98.7% at 120V, 91% at 277V
  • Photocell: 120V Swivel Photocell Included. Photocell is only compatible with 120V.
  • Surge Protection: 6kV
  • Note: All values are typical (tolerance +/- 10%)

Listings

  • UL Listing: Suitable for wet locations. Suitable for ground mounting.
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: PVUWWHNV

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • LEDs: Multi-chip, high-output, long-life LEDs
  • Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.

Construction

  • IP Rating: Ingress Protection rating of IP66 for dust and water
  • Airflow: Airflow technology heat sink for superior cooling
  • Ambient Temperature: Suitable For use in 40°C (104°F)
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Thermal Management Housing: Die-cast aluminum housing, lens frame and mounting arm
  • Mounting: Heavy-duty mounting arm with "O" ring seal & stainless steel screw
  • Reflector: Semi-specular anodized aluminum
  • Gaskets: High-temperature silicone gaskets
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.

Optical

  • NEMA Type: NEMA Beam Spread of 7H x 6V

Other

  • Equivalency: Equivalent to 100W Metal Halide
  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Patents: The FFLED design is protected by U.S. Pat. D643,147, Canada Pat. 140798, China Pat. ZL201130171304.1, Mexico Pat. 36757 and pending patent in Taiwan.
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Overview

UPC 01981303187
GTiN 00019813031873
Finish Bronze
Voltage 277 Volt
Type FLOODLIGHT
Applications OUTDOOR
Weight 4.8 lb
Wattage 18 Watt
Color Temperature 5000 K
Color Accuracy 71 CRI
Lumens 2,429 lm
Family Brand Name Rab Design Lighting
Amperage 0.2 Amp
Average Rated Life 100,000 hr
Input Wattage 19.70 W
Power Factor 98.7% At 120V,91% At 277V
Efficacy 123.3 LPW
Total Harmonic Distortion 11.89% At 120V
