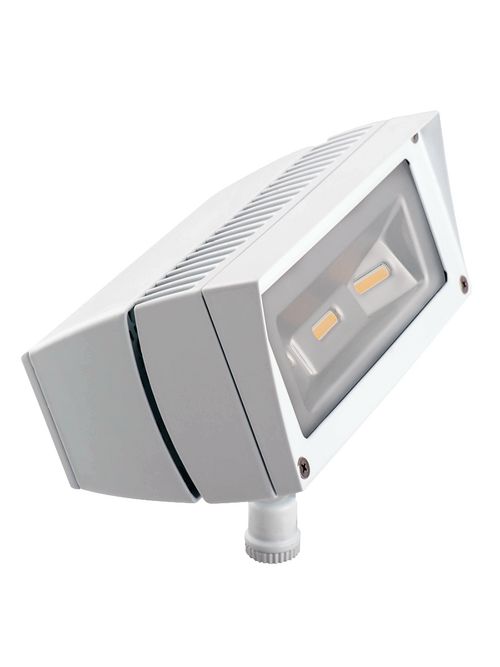

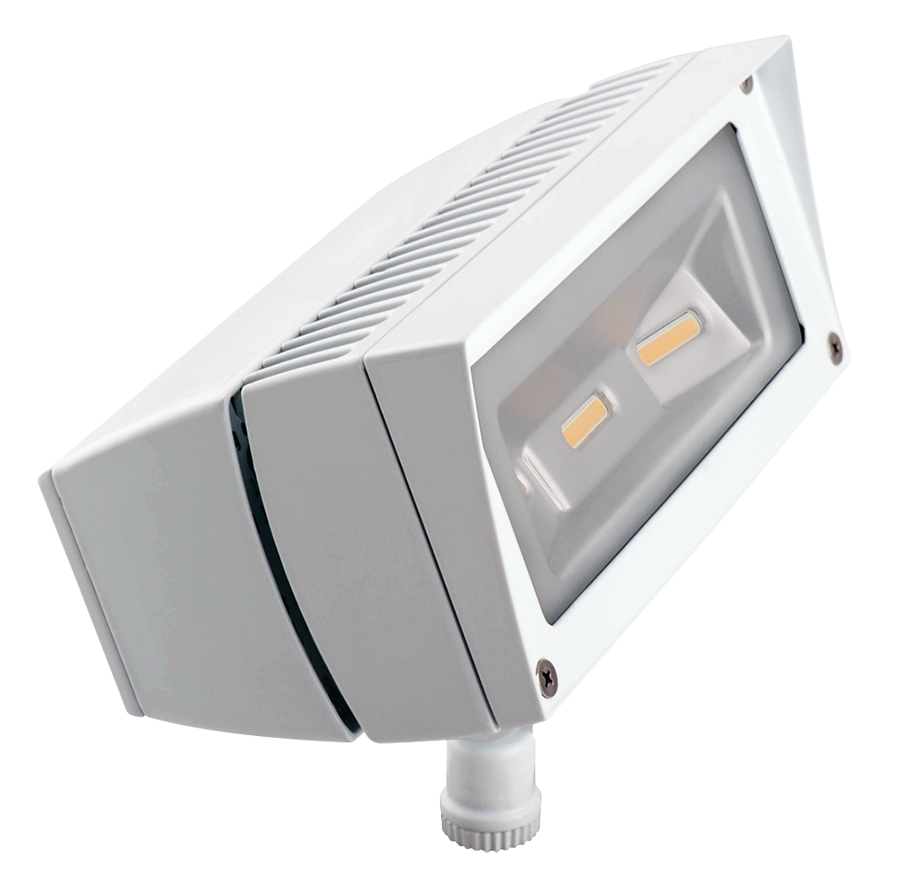

RAB FFLED18DCW FUT.FLOOD 18W COOL 1
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$535.18/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # FFLED18DCW
North Coast Part # 1101614

Features

  • Low voltage DC
  • Ideal for solar applications
  • Up to 85% more energy efficient
  • No energy-loss from DC-AC inverter
  • Enables off-grid, remote-area lighting
  • 5-Year, No-Compromise Warranty

Specifications

Performance

  • Watts: 18W
  • Color Temp: 5000K (Cool)
  • Lumens: 1,681
  • Efficacy: 70 lm/W
  • Color Accuracy: 71 CRI
  • L70 Lifespan: 100,000 hours
  • Type: DC to DC
  • Input Watts: 24.00W

Dimensions

  • Weight: 4.8 lbs

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • LEDs: Multi-chip 18 watt, high-output, long-life LEDs
  • Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Electrical

  • Electrical Input Specifications: Max Watts = 24W. Input Volts = 10-30 VDC. Operating Amps = 3.0 - 1.0A.

Construction

  • Cold Weather Starting: The minimum starting temperature is -30°C (-22°F)
  • Housing: Die-cast aluminum housing, hood and mounting arm
  • Mounting: Heavy-duty arm with "O" ring seal and stainless steel screws
  • Reflector: Specular aluminum
  • Gaskets: High-temperature silicone gaskets
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.

Optical

  • NEMA Type: NEMA Beam Spread of 7H x 6V

Listings

  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Other

  • Patents: The design of the LFLOOD is protected by US patents pending in US., Canada, China, Taiwan & Mexico.
  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Equipment: Solar panel, battery and controls by others
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Overview

GTiN 00019813158891
Voltage 100-240 Volt
Type FLOODLIGHT
Weight 4.8 lb
Wattage 18 Watt
Color Temperature 5000 K
Color Accuracy 71 CRI
Lumens 1681 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Average Rated Life 100,000 hr
Input Wattage 24.00 W
Efficacy 70 LPW
Product UPC 01981315889
Applications OUTDOOR
