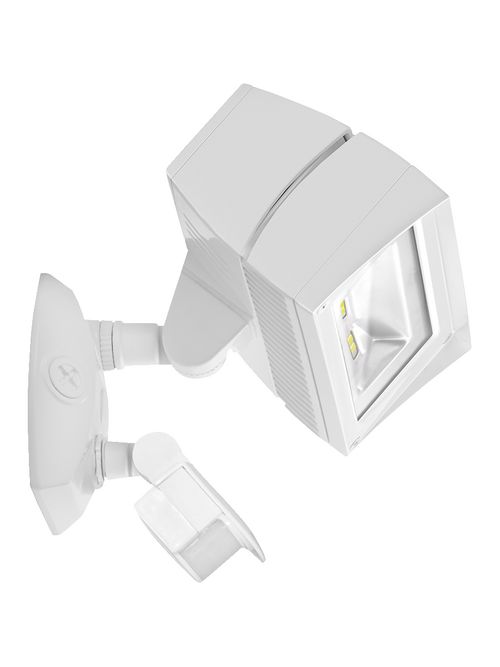

RAB FFLED18MSW LSTEALTH FFLED18 18W
$393.53/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # FFLED18MSW
North Coast Part # 1166633

Features

  • Ultra-efficient LED and optical design
  • 5-Year, No-Compromise Warranty
  • 180 detection pattern
  • Quick installation with 5 second test time and auto test logic
  • LED "on guard" indicator
  • Protected manual override with auto reset after 8 hours or at dawn

Specifications

Performance

  • Watts: 18W
  • Color Temp: 5000K (Cool)
  • Lumens: 1,681
  • Efficacy: 76.1 lm/W
  • Color Accuracy: 69 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.2A
  • Input Watts: 22.1W

Dimensions

  • Weight: 5.3 lbs

Listings

  • UL Listing: Suitable for wet locations
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • LEDs: 18 Watt high performance LEDs
  • Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.
  • LED Detection Indicator: LED glows red day & night for "on guard" deterrence

Optical

  • NEMA Type: 7H x 6V Beam Spread

Construction

  • Airflow: Airflow technology heat sink for superior cooling
  • Ambient Temperature: Suitable For use in 40°C (104°F)
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Mounting: Heavy-duty mounting arm with "O" ring seal & stainless steel screw
  • Reflector: Semi-specular anodized aluminum
  • Gaskets: High-temperature silicone gaskets
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.
  • Compatibility: Compatible with most electronic ballasts. Not compatible with instant start ballasts.

Electrical

  • Driver: Constant Current, Class 2, 100 - 277V, 50 - 60 Hz, 100 - 277VAC 0.4 Amps.
  • Surge Protection: 6kV
  • Voltage: 120 volts AC 60 Hz
  • Manual Override: Double flip wall switch logic prevents activation by brief power outages. Resets after 6 hours. No extra wiring needed.
  • RF Immunity: Circuits fully shielded for maximum radio frequency immunity
  • Ratings: 5 amps
  • Power Consumption: Negligible
  • Manual Switch: None
  • THD: 8.5% at 120V, 7.2% at 277V

Other

  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of ten (10) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
  • Patents: The FFLED18 design is protected by Taiwan Patent 01510948 and patents pending in the U.S., Canada, China, and Mexico.
  • Equivalency: Equivalent to 70W Metal Halide
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Sensor Characteristics

  • Time Adjustment: 5 seconds to 15 minutes
  • Quick Test Time: 5 second test time for fast installation. Works day or night.
  • No Hands" Auto Testing: Auto mode starts after 4 minutes of testing. No adjustment needed.
  • Photoelectric Control: Deactivates lights during daylight. Fully adjustable for 24 hour operation or custom applications.
  • Time Delay: 5 seconds to 15 minutes
  • Ambient Light Sensing: Adjustable
  • Adjustments: Time, ambient light & sensitivity
  • Detection: 180° detection pattern
  • Sensor Switching Capacity: 5 Amps, 450 Watts LED @ 120 Volts 0.8pF Driver; 5 Amps, 300 Watts LED @ 120 Volts 0.5pF Driver .

Overview

UPC 01981303367
GTiN 00019813033679
Voltage 100-240 Volt
Type SENSOR
Weight 5.3 lb
Wattage 18 Watt
Color Temperature 5000 K
Color Accuracy 69 CRI
Lumens 1,681 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Input Wattage 22.1 W
Efficacy 76.1 LPW
