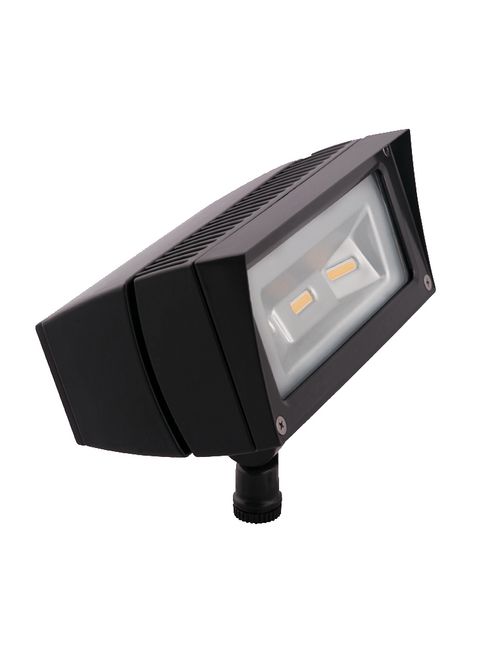

RAB FFLED18Y/PC2 FUT.FLOOD 18W WARM
$352.86/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # FFLED18Y/PC2
North Coast Part # 1101627

Features

  • Ultra-efficient LED and optical design
  • Replaces 70W MH floodlights
  • 100,000-hour life based on LM-80 results and TM-21 calculations
  • NEMA type - 7H x 6V
  • Air-Flow" technology heatsink
  • 5-Year, No-Compromise Warranty

Specifications

Performance

  • Watts: 18W
  • Color Temp: 3000K (Warm)
  • Lumens: 2,042
  • Efficacy: 88.4 lm/W
  • Color Accuracy: 82 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 208V: 0.15A
  • 240V: 0.13A
  • 277V: 0.11A
  • Input Watts: 23.1W

Dimensions

  • Weight: 4.8 lbs

Electrical

  • Driver: Constant Current, Class 2, 100 - 277V, 50 - 60 Hz, 100 - 277VAC 0.4 Amps.
  • Photocell: 277V Button Photocell Included. Photocell is compatible with 208V-277V.
  • Surge Protection: 6kV
  • THD: 4.7% at 120V, 13.8% at 277V

Listings

  • DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: PVRR7PTE
  • UL LISTING: Suitable For Wet Locations. Suitable for ground mounting.
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • Note: All values are typical (tolerance +/- 10%)
  • LEDs: Multi-chip, high-output, long-life LEDs
  • Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.

Construction

  • IP Rating: Ingress Protection rating of IP66 for dust and water
  • Airflow: Airflow technology heat sink for superior cooling
  • Ambient Temperature: Suitable For use in 40°C (104°F)
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Thermal Management Housing: Die-cast aluminum housing, lens frame and mounting arm
  • Mounting: Heavy-duty mounting arm with "O" ring seal & stainless steel screw
  • Reflector: Semi-specular anodized aluminum
  • Gaskets: High-temperature silicone gaskets
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.

Optical

  • NEMA Type: NEMA Beam Spread of 7H x 6V

Other

  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
  • Patents: The FFLED design is protected by U.S. Pat. D643,147, Canada Pat. 140798, China Pat. ZL201130171304.1, Mexico Pat. 36757 and pending patent in Taiwan.
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Overview

UPC 01981303194
GTiN 00019813031941
Finish Bronze
Voltage 277 Volt
Type Future Flood Lights
Applications OUTDOOR
Weight 4.8 lb
Wattage 18 Watt
Color Temperature 3000 K
Color Accuracy 82 CRI
Lumens 2,042 lm
Family Brand Name Rab Design Lighting
Input Wattage 23.1 W
Efficacy 88.4 LPW
