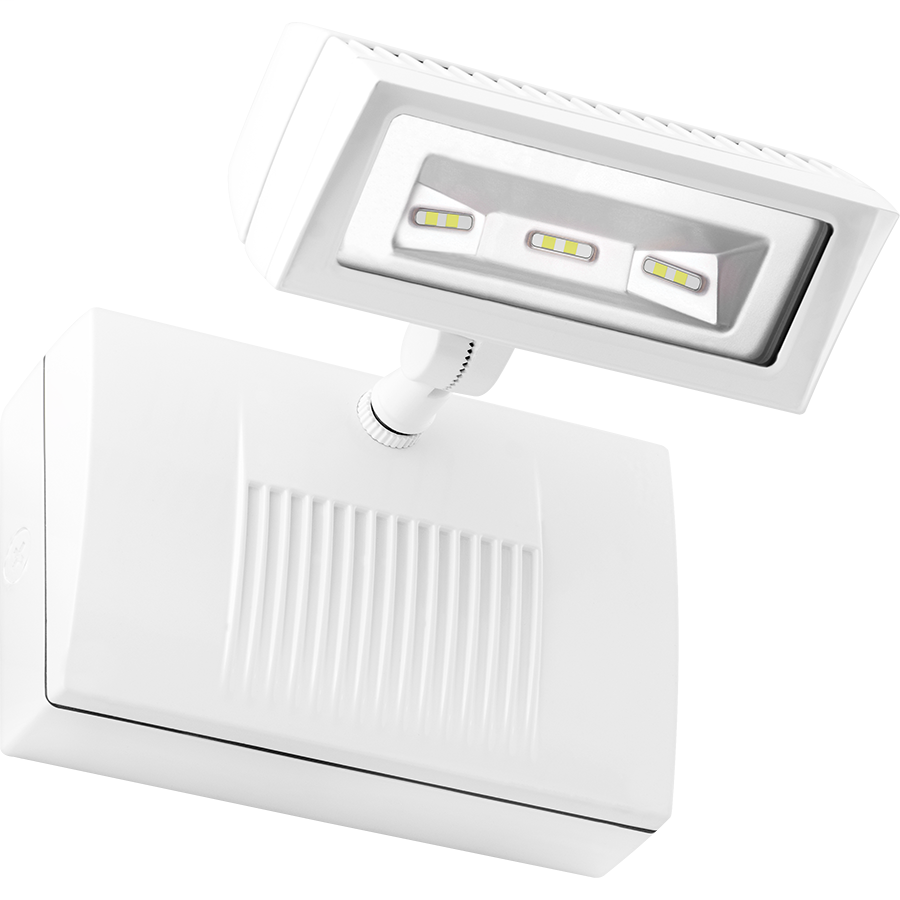

RAB FFLED18YW/E LBACKUP FFLED 1 WH

Features

• Ultra-efficient LED and optical design
• Replaces 70W MH floodlights
• 100,000-hour life based on LM-80 results and TM-21 calculations
• NEMA type - 7H x 6V
• Air-Flow" technology heatsink
• 5-Year, No-Compromise Warranty

Specifications

Performance

• Watts: 18W
• Color Temp: 3000K (Warm)
• Lumens: 2,069
• Efficacy: 107.2 lm/W
• Color Accuracy: 83 CRI
• L70 Lifespan: 100,000 hours
• Type: Constant Current
• 120V: 0.2A
• 208V: 0.15A
• 240V: 0.13A
• 277V: 0.11A
• Input Watts: 19.30W

Dimensions

• Weight: 13.3 lbs

Listings

• UL Listing: Suitable for Wet Locations. Wall Mount Only. Battery Backup UL 924 Listed Emergency Lighting Power Supply.
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
• DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: PZT89YU3

Electrical

• Driver: Constant Current, Class 2, 120-277V, 50 - 60 Hz, 120V: 0.2A, 208V: 0.15A, 240V: 0.13A, 277V: 0.11A
• THD: 8.7% at 120V, 16.74% at 277V
• Power Factor: 99.1% at 120V, 91.3% at 277V
• Surge Protection: 6kV
• Note: All values are typical (tolerance +/- 10%)

LED Characteristics

• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
• LEDs: Multi-chip, high-output, long-life LEDs
• Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
• Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
• Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.

Construction

• IP Rating: Ingress Protection rating of IP66 for dust and water
• Thermal Management: Optimized using computational fluid dynamics software to ensure long LED and driver lifespan
• Gaskets: High-temperature silicone
• Housing: Precision die-cast aluminum housing, lens frame and mounting arm
• Airflow: Airflow technology heat sink for superior cooling
• Thermal Management Housing: Die-cast aluminum housing, lens frame and mounting arm
• Mounting: Heavy-duty mounting arm with "O" ring seal & stainless steel screw
• Reflector: Semi-specular anodized aluminum
• Finish: Formulated for high durability and long-lasting color
• Green Technology: Mercury and UV free. RoHS-compliant components.

Battery Backup

• Backup Battery: Two field-replaceable, high-temperature, maintenance-free, nickel-cadmium batteries

Optical

• NEMA Type: NEMA Beam Spread of 7H x 6V

Other

• Equivalency: Equivalent to 100W Metal Halide
• Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
• Patents: The FFLED design is protected by U.S. Pat. D643,147, Canada Pat. 140798, China Pat. ZL201130171304.1, Mexico Pat. 36757 and pending patent in Taiwan.
• Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
