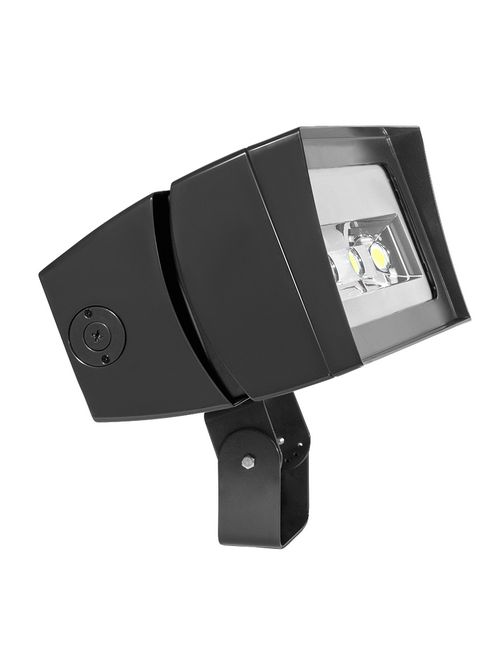

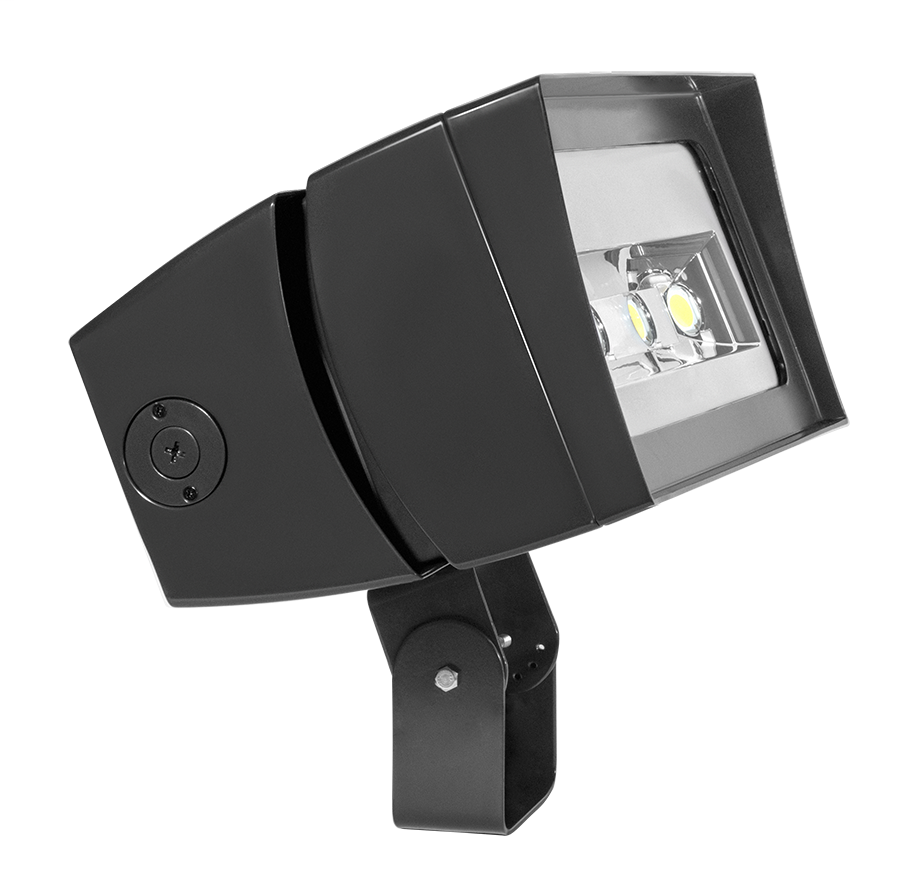

RAB FFLED230T/D10 230W 7HX6V 5000K1
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # FFLED230T/D10
North Coast Part # 1688013


  • Ultra-efficient LED and optical design
  • 100,000-hour life based on LM-80 results and TM-21 calculations
  • Air-Flow" technology heatsink
  • 5-Year, No-Compromise Warranty



  • Watts: 230W
  • Color Temp: 5000K (Cool)
  • Lumens: 33,506
  • Efficacy: 140.8 lm/W
  • Color Accuracy: 76 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 1.99A
  • 208V: 1.18A
  • 240V: 1.03A
  • 277V: 0.86A
  • Input Watts: 238.00W


  • Weight: 41.2 lbs


  • UL Listing: Suitable for wet locations. Suitable for mounting within 1.2m (4ft) of the ground.
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: PLI5W0TM


  • Driver: Constant Current, Class 1, 120-277V, 50/60 Hz, 120V: 1.99A, 208V: 1.18A, 240V: 1.03A, 277V: 0.86A
  • Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
  • THD: 6.3% at 120V, 6.6% at 277V
  • Power Factor: 99.7% at 120V, 96.8% at 277V
  • Note: All values are typical (tolerance +/- 10%)
  • Surge Protection: 6kV

LED Characteristics

  • LEDs: Multi-chip, high-output, long-life LEDs
  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.


  • IP Rating: Ingress Protection rating of IP66 for dust and water
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Ambient Temperature: Suitable For use in 40°C (104°F)
  • Thermal Management Housing: Superior heat sinking with external Air-Flow fins
  • Housing: Die-cast aluminum housing, lens frame and mounting arm
  • Mounting: Heavy-duty Trunnion mount with stainless steel hardware
  • Lens: Clear glass lens
  • Reflector: Specular vacuum-metalized polycarbonate
  • Effective Projected Area: EPA = 2.1
  • Gaskets: High-temperature silicone gaskets
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.


  • NEMA Type: NEMA Beam Spread of 7H x 6V


  • Equivalency: Equivalent to 1000W Metal Halide
  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Patents: The FFLED design is protected by U.S. Pat. D643,147, Canada Pat. 140798, China Pat. ZL201130171304.1, Mexico Pat. 36757 and pending patent in Taiwan.
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.


UPC 01981367262
Item Long Description Future Flood, 230W,7Hx6V, 5000k, LED, 120-277V, Dimmable Trunnion, Bronze
GTiN 00019813672625
Finish Bronze
Voltage 120/277 Volt
Applications OUTDOOR
Weight 41.2 lb
Wattage 230 Watt
Color Temperature 5000 K
Color Accuracy 76 CRI
Lumens 33506 lm
Family Brand Name RAB LIGTHING
Amperage 0.86 Amp
Average Rated Life 100,000 hr
Input Wattage 238.00 W
Power Factor 96.8% At 277V,99.7% At 120V
Efficacy 140.8 LPW
Total Harmonic Distortion 6.3% At 120V,6.6% At 277V
