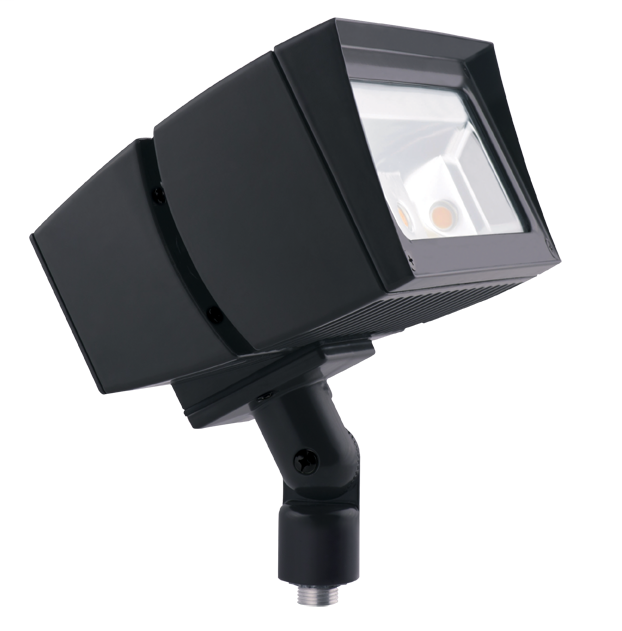

RAB FFLED39N/PC2 FUT.FLOOD 39W NEUT
$558.54/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # FFLED39N/PC2
North Coast Part # 1102024

Features

  • Ultra-efficient LED and optical design
  • Replaces 150W MH floodlights
  • 100,000-hour life based on LM-80 results and TM-21 calculations
  • Air-Flow" technology heatsink
  • 5-Year, No-Compromise Warranty

Specifications

Performance

  • Watts: 39W
  • Color Temp: 4000K (Neutral)
  • Lumens: 5,651
  • Efficacy: 133.9 lm/W
  • Color Accuracy: 71 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 208V: 0.20A
  • 240V: 0.18A
  • 277V: 0.15A
  • Input Watts: 42.2W

Dimensions

  • Weight: 12.5 lbs

Electrical

  • Driver: Constant Current, Class 2, 1050mA, 100-277V, 50/60Hz, 0.6A, Power Factor 99%
  • Photocell: 277V Button Photocell Included. Photocell is compatible with 208V-277V.
  • Surge Protection: 4kV
  • THD: 4.7% at 120V, 13.8% at 277V

Listings

  • DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: P0000173J
  • UL Listing: Suitable For Wet Locations. Suitable for ground mounting.
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • Note: All values are typical (tolerance +/- 10%)
  • LEDs: Two multi-chip, 26Watt high performance LEDs
  • Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.

Construction

  • IP Rating: Ingress Protection rating of IP66 for dust and water
  • Ambient Temperature: Suitable For use in 40°C (104°F)
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Thermal Management Housing: Superior heat sinking with external Air-Flow fins
  • Mounting: Heavy-duty mounting arm with "O" ring seal & stainless steel screw
  • Effective Projected Area: EPA = 0.65
  • Reflector: Specular vacuum-metallized polycarbonate
  • Gaskets: High-temperature silicone gaskets
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.
  • Threaded Size: 1/2" threaded arm

Optical

  • NEMA Type: NEMA Beam Spread of 7H x 6V

Other

  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
  • Patents: The FFLED design is protected by U.S. Pat. D643,147, Canada Pat. 140798, China Pat. ZL201130171304.1, Mexico Pat. 36757 and pending patent in Taiwan.
  • Equivalency: Equivalent to 150W Metal Halide
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Overview

UPC 01981303178
GTiN 00019813031781
Finish Bronze
Voltage 277 Volt
Type FLOODLIGHT
Applications OUTDOOR
Weight 12.5 lb
Wattage 39 Watt
Color Temperature 4000 K
Color Accuracy 71 CRI
Lumens 5,651 lm
Family Brand Name Rab Design Lighting
Input Wattage 42.2 W
Efficacy 133.9 LPW
