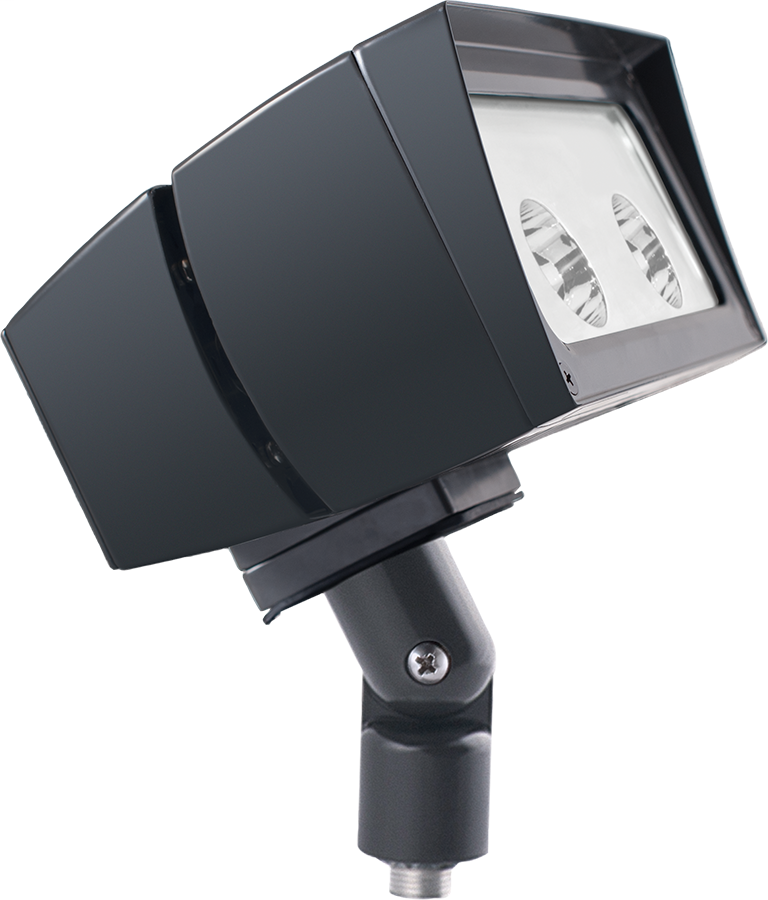

RAB FFLED39NB55/PC FUT.FLOOD 39W 5X

Features

• Ultra-efficient LED and optical design
• Replaces 150W MH floodlights
• 100,000-hour life based on LM-80 results and TM-21 calculations
• Air-Flow" technology heatsink
• 5-Year, No-Compromise Warranty

Specifications

Performance

• Watts: 39W
• Color Temp: 4000K (Neutral)
• Lumens: 4,690
• Efficacy: 111.1 lm/W
• Color Accuracy: 71 CRI
• L70 Lifespan: 100,000 hours
• Type: Constant Current
• 120V: 0.35A
• Input Watts: 42.2W

Dimensions

• Weight: 12.5 lbs

Electrical

• Driver: Constant Current, Class 2, 100-277V, 50/60 Hz, 6 kV surge protection, 120V: 0.35A, 208V: 0.20A, 240V: 0.18A, 277V: 0.15A
• Photocell: 120V Button Photocell Included. Photocell is only compatible with 120V.
• Surge Protection: 4kV

Listings

• DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: PBSURCUT
• UL Listing: Suitable For Wet Locations. Suitable for mounting within 1.2M(4FT) of the ground.
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

LED Characteristics

• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
• Note: All values are typical (tolerance +/- 10%)
• LEDs: Two multi-chip, 26Watt high performance LEDs
• Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
• Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
• Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.

Construction

• IP Rating: Ingress Protection rating of IP66 for dust and water
• Ambient Temperature: Suitable For use in 40°C (104°F)
• Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
• Thermal Management Housing: Superior heat sinking with external Air-Flow fins
• Housing: Die-cast aluminum housing, lens frame and mounting arm
• Threaded Size: 1/2" threaded arm
• Mounting: Heavy-duty mounting arm with "O" ring seal & stainless steel screw
• Effective Projected Area: EPA = 0.65
• Reflector: Specular polycarbonate
• Gaskets: High-temperature silicone gaskets
• Finish: Formulated for high durability and long-lasting color
• Green Technology: Mercury and UV free. RoHS-compliant components.

Optical

• NEMA Type: NEMA Beam Spread of 5H x 5V

Other

• Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
• Patents: The FFLED design is protected by U.S. Pat. D643,147, Canada Pat. 140798, China Pat. ZL201130171304.1, Mexico Pat. 36757 and pending patent in Taiwan.
• Equivalency: Equivalent to 150W Metal Halide
• Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
