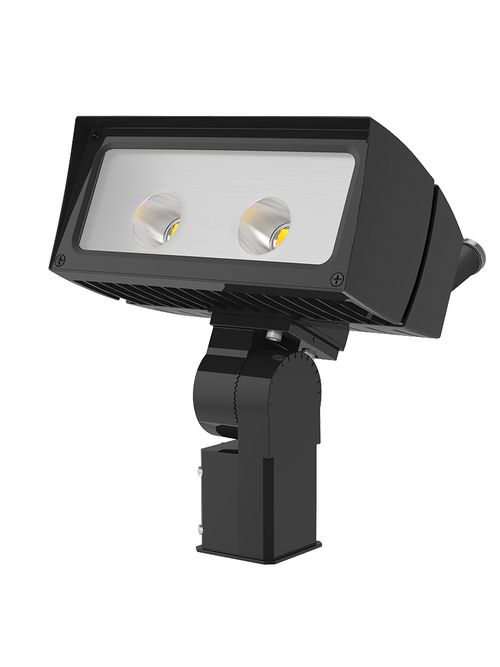

RAB FFLED39SFNB44/PCS2 FUT.FLOOD 39

Features

• Ultra-efficient LED and optical design
• Replaces 150W MH floodlights
• 100,000-hour life based on LM-80 results and TM-21 calculations
• Air-Flow" technology heatsink
• 5-Year, No-Compromise Warranty

Specifications

Performance

• Watts: 39W
• Color Temp: 4000K (Neutral)
• Lumens: 5,178
• Efficacy: 123.3 lm/W
• Color Accuracy: 75 CRI
• L70 Lifespan: 100,000 hours
• Type: Constant Current
• 208V: 0.23A
• 240V: 0.20A
• 277V: 0.16A
• Input Watts: 42.00W

Dimensions

• Weight: 14.2 lbs

Listings

• UL Listing: Suitable for wet locations. Suitable for mounting within 1.2m (4ft) of the ground.
• Title 24 Compliant: An FFLED flood light can be used with a motion sensor or photocell control option to comply with 2016 Title 24 Part 6 Section 130.2 (a,b,c)
• DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: PBXHS3FD

LED Characteristics

• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
• LEDs: Long-life, high-efficacy surface mount LEDs
• Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
• Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
• Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.

Electrical

• Driver: Constant Current, Class 2, 120-277V, 50-60Hz, 120V: 0.35A, 208V: 0.23A, 240V: 0.13A, 277V: 0.11A
• Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
• THD: 8.94% at 120V, 16.82% at 277V
• Power Factor: 99.1% at 120V, 92% at 277V
• Note: All values are typical (tolerance +/- 10%)
• Photocell: 277V Swivel Photocell Included. Photocell is compatible with 208V-277V.

Construction

• Lens: Soda lime silica clear glass
• Housing: Die cast aluminum housing, lens frame and mounting arm
• Mounting: Heavy-duty Slip Fitter for 2 3/8" OD pipe
• IP Rating: Ingress Protection rating of IP66 for dust and water
• Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
• Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
• Effective Projected Area: EPA = 0.75
• Green Technology: Mercury and UV free. RoHS-compliant components.
• Finish: Formulated for high durability and long-lasting color

Optical

• NEMA Type: NEMA Beam Spread of 4H x 4V

Other

• Equivalency: Equivalent to 250W Metal Halide
• Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
• Patents: The FFLED design is protected by U.S. Pat. D643,147, Canada Pat. 140798, China Pat. ZL201130171304.1, Mexico Pat. 36757 and pending patent in Taiwan.
• Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
