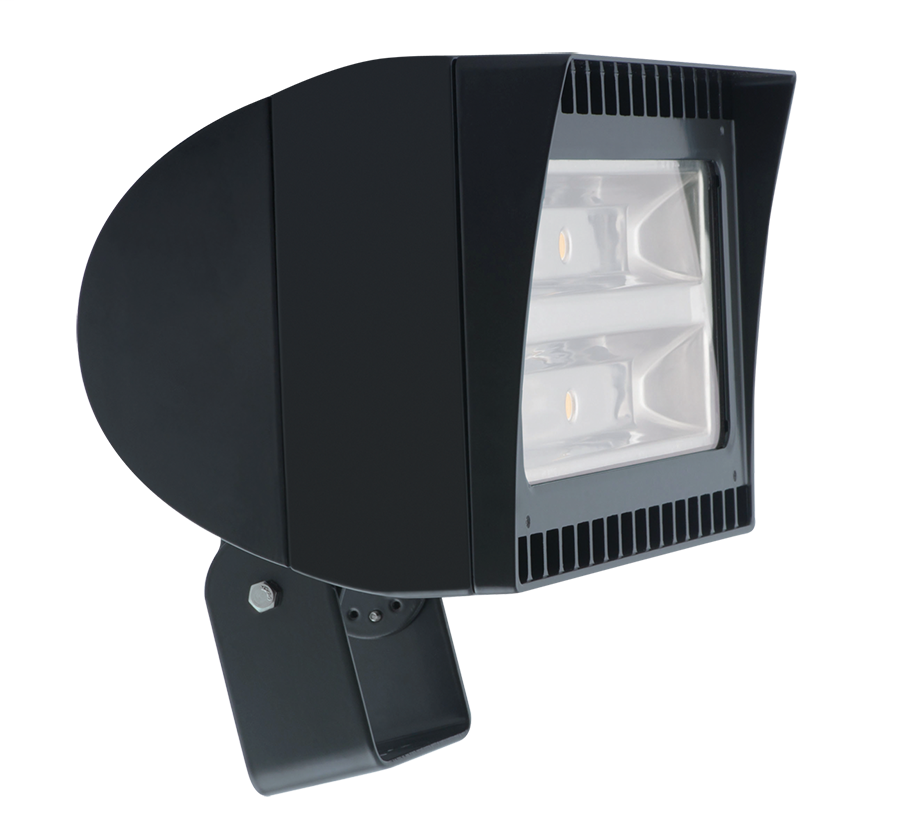

RAB FXLED125TN/480 FLEXFLOOD 125W N

Features

• 66% energy cost savings vs. HID
• NEMA Type - 6H x 6V
• Air-Flow" technology heat dissipation
• 100,000-hour LED lifespan
• 5-Year, No-Compromise Warranty

Specifications

Performance

• Watts: 125W
• Color Temp: 4000K (Neutral)
• Lumens: 18,415
• Efficacy: 134.3 lm/W
• Color Accuracy: 74 CRI
• L70 Lifespan: 100,000 hours
• Type: Constant Current
• Input Watts: 137.10W

Dimensions

• Weight: 25.0 lbs

Listings

• UL Listing: Suitable for wet locations. Suitable for ground mounting.
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
• DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: PTSPYVH2

LED Characteristics

• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
• LEDs: Multip-chip, high-output, long-life LEDs
• Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
• Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
• Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

• IP Rating: Ingress Protection rating of IP66 for dust and water
• Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
• Effective Projected Area: EPA = 2
• Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
• Thermal Management: Superior thermal management with external "Air-Flow" fins
• Lens: Tempered glass lens
• Housing: Die-cast aluminum housing and door frame
• Mounting: Heavy-duty Trunnion mount with stainless steel hardware
• Reflector: Specular, vacuum-metalized polycarbonate
• Gaskets: High-temperature silicone gaskets
• Finish: Formulated for high durability and long-lasting color
• Green Technology: Mercury and UV free. RoHS-compliant components.

Electrical

• Drivers: Two Drivers, Constant Current, Class 2, 1750mA, 347-480V, 50/60Hz, 0.30A, Power Factor 99%
• THD: 11.92% at 480V
• Power Factor: 95% at 480V
• Note: All values are typical (tolerance +/- 10%)
• Ballast Volts: 480V

Optical

• NEMA Type: NEMA Beam Spread of 6H x 6V

Sensor Characteristics

• Field & Beam Angles: Horizontal Beam Angle (50%): 91.8°, Vertical Beam Angle (50%): 73.5° Horizontal Field Angle (10%): 121.0°, Vertical Field Angle (10%): 108.0°

Other

• Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
• Patents: The design of FXLED125 is protected by patents pending in US, Canada, China, Taiwan and Mexico
• Equivalency: Equivalent to 750W Pulse Start Metal Halide
• Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
