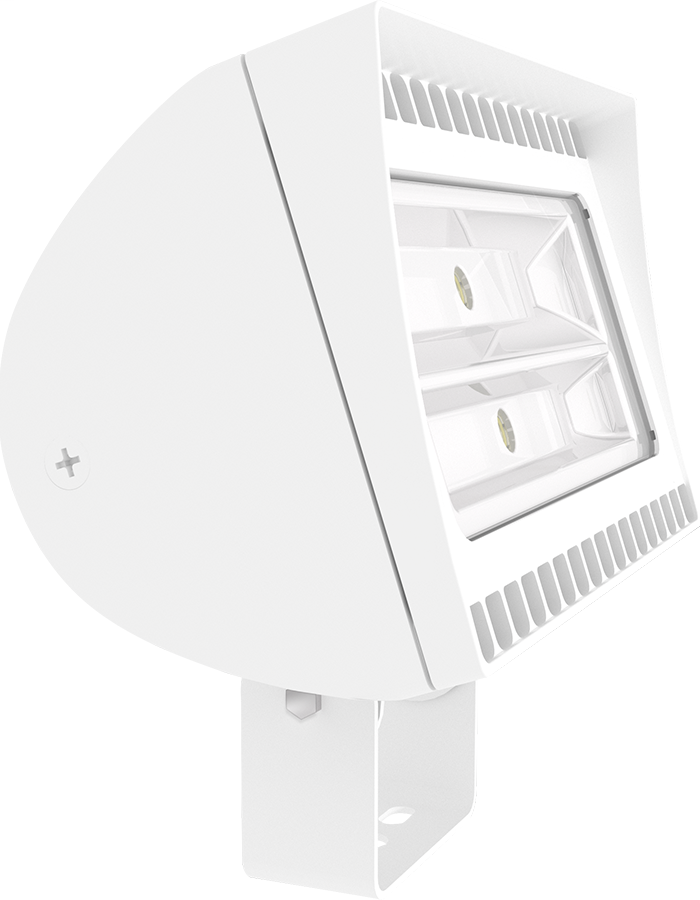

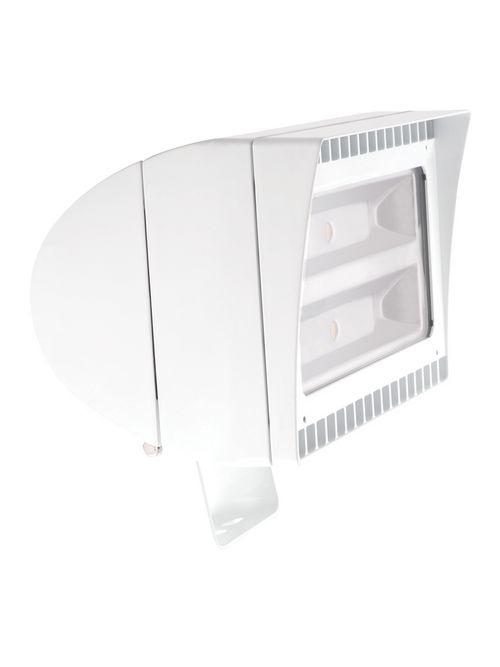

RAB FXLED150TYW FLEXFLOOD 150W WARM
$1,147.33/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # FXLED150TYW
North Coast Part # 1100170

Features

  • 66% energy cost savings vs. HID
  • NEMA Type - 6H x 6V
  • Air-Flow" technology heat dissipation
  • 100,000-hour LED lifespan
  • 5-Year, No-Compromise Warranty

Specifications

Performance

  • Watts: 150W
  • Color Temp: 3000K (Warm)
  • Lumens: 20,734
  • Efficacy: 124.1 lm/W
  • Color Accuracy: 71 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 1.39A
  • 208V: 0.81A
  • 240V: 0.70A
  • 277V: 0.60A
  • Input Watts: 167.10W

Dimensions

  • Weight: 20.9 lbs

Listings

  • UL Listing: Suitable for wet locations. Suitable for mounting within 1.2m (4ft) of the ground.
  • IESNA LM-79 & IESNA LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Electrical

  • Driver: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 1.39A, 208V: 0.81A, 240V: 0.70A, 277V: 0.60A
  • Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
  • THD: 1.42% at 120V, 7.59% at 277V
  • Power Factor: 99.9% at 120V, 97.6% at 277V
  • Note: All values are typical (tolerance +/- 10%)

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • LEDs: Long-life, high-efficacy surface mount LEDs
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

  • IP Rating: Ingress Protection rating of IP66 for dust and water
  • Ambient Temperature: Suitable for -40°C (-40°F) to 40°C (104°F)
  • Lens: Tempered glass lens included
  • Housing: Die-cast aluminum housing and door frame
  • Mounting: Heavy-duty Trunnion mount with stainless steel hardware
  • Finish: Formulated for high durability and long-lasting color

Other

  • Equivalency: Equivalent to 750W-1000W Pulse Start Metal Halide
  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Overview

UPC 01981392606
GTiN 00019813926063
Finish WHITE
Color 3000K Warm (Warm)
Voltage 120/277 Volt
Type FLOODLIGHT
Applications OUTDOOR
Weight 20.9 lb
Wattage 150 Watt
Color Temperature 3000 K
Color Accuracy 71 CRI
Lumens 20,734 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Amperage 0.6 Amp
Average Rated Life 100,000 hr
Input Wattage 167.10 W
Power Factor 97.6% At 277V,99.9% At 120V
Efficacy 124.1 LPW
Total Harmonic Distortion 1.42% At 120V,7.59% At 277V
