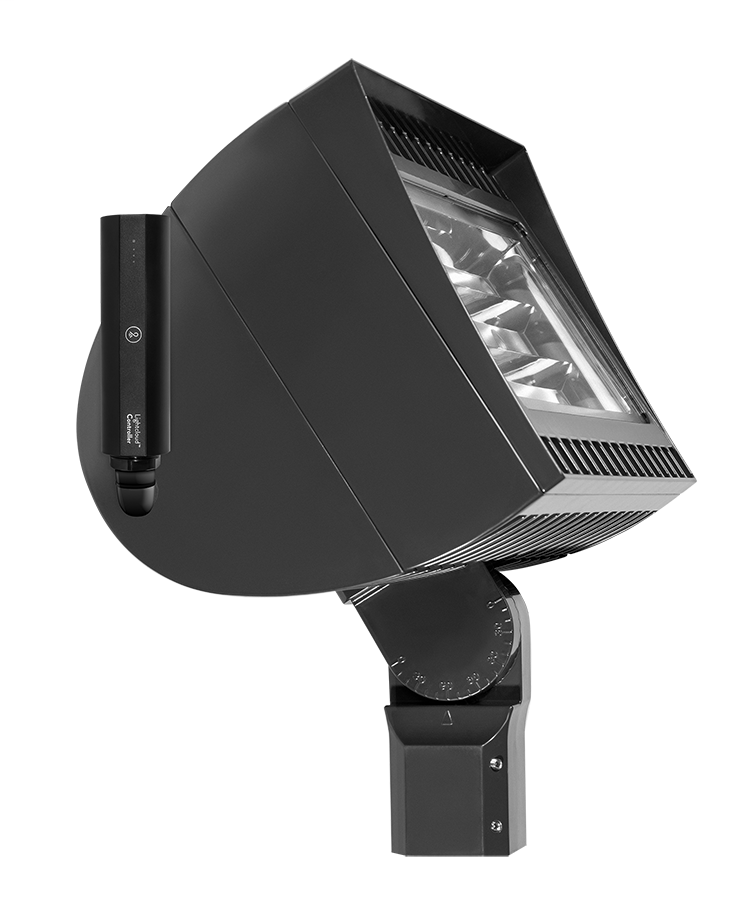

RAB FXLED200SF/LC FXLED 200W 5K 7HX
Product image thumbnail 0
Product image thumbnail 1
$2,635.27/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # FXLED200SF/LC
North Coast Part # 1834123

Features

  • 200W replaces 400 MH floodlights
  • 100,000-hour LED lifespan
  • 5-year No Compromise Warranty
  • Lightcloud wireless control system built in
  • Easy setup - simply power on and call 844-LIGHTCLOUD

Specifications

  • Color: Bronze

LED Info

  • Watts: 200W
  • Color Temp: 5000K
  • Color Accuracy: 72 CRI
  • L70 Lifespan: 100000
  • Lumens: 27005
  • Efficacy: 132 LPW

Driver Info

  • Type: Constant Current
  • 120V: 1.72A
  • 208V: 1.03A
  • 240V: 0.89A
  • 277V: 0.77A
  • Input Watts: 204W

Dimensions

  • Weight: 66.1 lbs

Lightcloud

  • Lightcloud Installed: Lightcloud is a commercial wireless lighting control system and service fully developed and supported by RAB. It's powerful and flexible, yet easy to use and install.

Listings

  • UL Listing: Suitable for wet locations. Suitable for ground mounting.
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaries have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have been received the Department of Energy "Lighting Facts" label.
  • DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.

Electrical

  • Drivers: Constant Current, 700mA, 50/60 Hz, 120-277V, 4 kV surge protection, 120V: 1.72A, 208V: 1.03A, 240V: 0.89A, 277V: 0.277A, THD <20%, Power Factor: 99%
  • THD: 4.4% at 120V, 10.2% at 277V

Optical

  • NEMA Type: NEMA Beam Spread of 7H x 6V

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
  • LEDs: Multip-chip, high-output, long-life LEDs
  • Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5 year period.
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2015.
  • Replacement: Replaces 400W Metal Halide

Construction

  • IP Rating: Ingress Protection rating of IP66 for dust and water
  • Maximum Ambient Temperature: SuitableFor use in 40°C (104°F) ambient temperatures
  • Effective Projected Area: EPA = 4
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Thermal Management: Superior thermal management with external "Air-Flow" fins.
  • Housing: Die-cast aluminum housing and door frame
  • Mounting: Heavy-duty Slipfitter for 2 3/8"OD pipe.
  • Reflector: Specular and semi-specular vacuum metalized polycarbonate
  • Gaskets: High-temperature silicone gaskets
  • Finish: Formulated for high-durability and long lasting color.
  • Green Technology: Mercury and UV free. RoHS compliant components. Polyester powder coat finish formulated without the use of VOC or toxic heavy metals.

Other

  • California Title 24: See FXLED200SF/D10, FXLED200SF/BL, FXLED200/PCS or FXLED200SF/PCS2 (277V) for a 2013 California Title 24 compliant product. Any additional component requirements will be listed in the Title 24 section under technical specifications on the product page.
  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish.
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Overview

UPC 01981347442
Item Long Description FXLED 200W 5000K LED 7HX6V LC SLIPFITTER BRONZE
GTiN 00019813474427
Finish Bronze
Color Bronze
Voltage 120/277 Volt
Type FLOODLIGHT
Applications OUTDOOR
Weight 66.1 lb
Wattage 200 Watt
Color Temperature 5000 K
Color Accuracy 72 CRI
Family Brand Name Rab Design Lighting
Input Wattage 204 W
Efficacy 132 LPW
Lumens 31951 Lm
