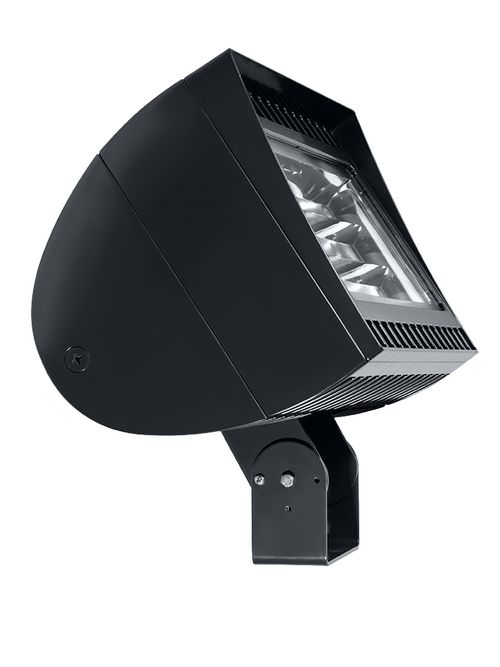

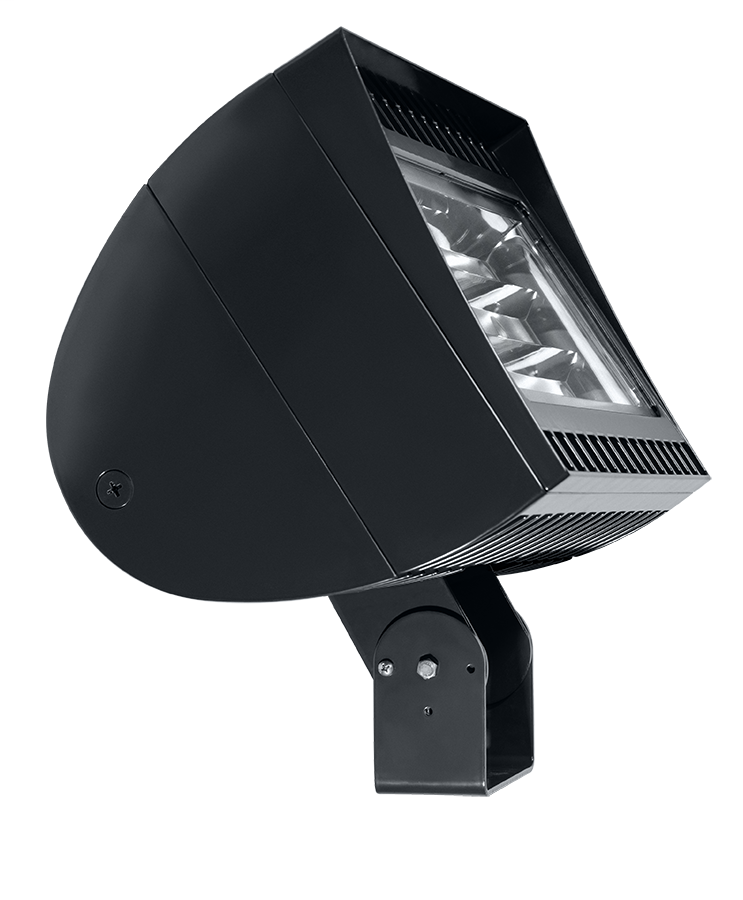

RAB FXLED500TNB64/D10 500W 4KLED6HX
$3,087.60/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # FXLED500TNB64/D10
North Coast Part # 1759914

Features

  • 500W replaces 1500W MH floodlights
  • 100,000-hour LED lifespan
  • 5-Year, No-Compromise Warranty

Specifications

Performance

  • Watts: 500W
  • Color Temp: 4000K (Neutral)
  • Lumens: 61,892
  • Efficacy: 119.8 lm/W
  • Color Accuracy: 75 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 4.27A
  • 208V: 2.53A
  • 240V: 2.20A
  • 277V: 1.84A
  • Input Watts: 516.70W

Dimensions

  • Weight: 71.0 lbs

Listings

  • UL Listing: Suitable for wet locations. Suitable for mounting within 1.2m (4ft) of the ground.
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80
  • DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: PADBAX8H

Electrical

  • Drivers: Constant Current, Class 1, 120-277V, 50/60 Hz, 120V: 4.27A, 208V: 2.53A, 240V: 2.20A, 277V: 1.84A
  • Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
  • THD: 6.38% at 120V, 5.63% at 277V
  • Power Factor: 99.7% at 120V, 97.1% at 277V
  • Surge Protection: 4kV
  • Note: All values are typical (tolerance +/- 10%)

Optical

  • NEMA Type: NEMA Beam Spread of 6H x 4V

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • LEDs: Multip-chip, high-output, long-life LEDs
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

  • IP Rating: Ingress Protection rating of IP66 for dust and water
  • Vibration Rating: 2G vibration rating per ANSI C136.31
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Ambient Temperature: Suitable For use in 40°C (104°F)
  • Effective Projected Area: EPA = 4
  • Thermal Management: Superior thermal management with external "Air-Flow" fins
  • Housing: Die-cast aluminum housing with lens frame
  • Mounting: Heavy-duty Trunnion mount with stainless steel hardware
  • Reflector: Specular vacuum-metalized polycarbonate; semi-specular on flat trim edge
  • Lens: Clear glass lens
  • Gaskets: High-temperature silicone gaskets
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.

Other

  • American Bureau of Shipping (ABS): For use on Mobile Offshore Drilling Units (MODU) and shipping vessels
  • Equivalency: Equivalent to 2x 1000W Metal Halide
  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Overview

UPC 01981364563
GTiN 00019813645636
Finish Bronze
Voltage 120/277 Volt
Type FLOODLIGHT
Applications OUTDOOR
Weight 71.0 lb
Wattage 500 Watt
Color Accuracy 75 CRI
Lumens 61,892 lm
Family Brand Name Rab Design Lighting
Amperage 1.84 Amp
Average Rated Life 100,000 hr
Input Wattage 516.70 W
Power Factor 97.1% At 277V,99.7% At 120V
Efficacy 119.8 LPW
Total Harmonic Distortion 5.63% At 277V,6.38% At 120V
