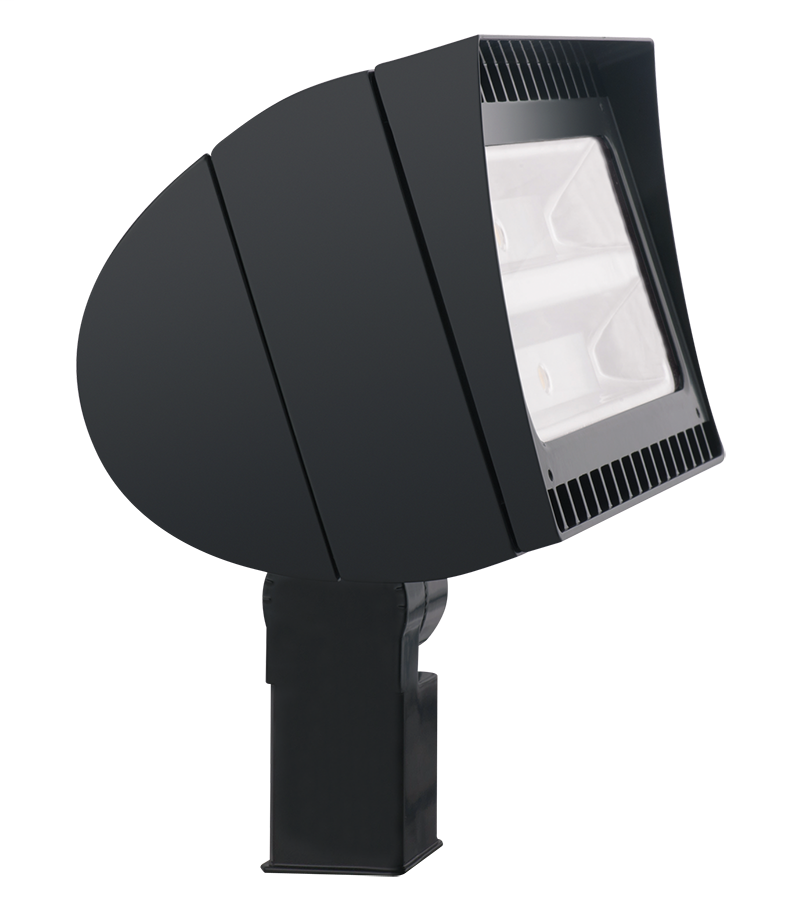

RAB FXLED78SF/480 FLEXFLOOD 78W COO
$1,173.47/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # FXLED78SF/480
North Coast Part # 1102852

Features

  • 66% energy cost savings vs. HID
  • NEMA Type - 6H x 6V
  • Air-Flow" technology heat dissipation
  • 100,000-hour LED lifespan
  • 5-Year, No-Compromise Warranty

Specifications

Performance

  • Watts: 78W
  • Color Temp: 5100K (Cool)
  • Lumens: 10,780
  • Efficacy: 135.3 lm/W
  • Color Accuracy: 71 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • Input Watts: 79.70W

Dimensions

  • Weight: 26.7 lbs

Electrical

  • Driver: Constant Current, Class 2, 2000mA, 347-480V, 50-60Hz, 0.17A, Power Factor 99%
  • THD: 8.85% at 480V
  • Power Factor: 96.1% at 480V
  • Photocell: 480V Swivel Photocell Included. Photocell is only compatible with 480V.
  • Note: All values are typical (tolerance +/- 10%)
  • Starting/Operating Amps: 480V = 0.17A
  • Surge Protection: 4kV

Listings

  • UL Listing: Suitable for wet locations. Suitable for ground mounting.
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: P6MR6RH7

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • LEDs: Six multi-chip, 13Watt high-output, long-life LEDs
  • Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.

Construction

  • IP Rating: Ingress Protection rating of IP66 for dust and water
  • EPA: 2
  • Ambient Temperature: Suitable For use in 40°C (104°F)
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Thermal Management: Superior heat sinking with external Air-Flow fins
  • Lens: Tempered glass lens
  • Housing: Die-cast aluminum housing and door frame
  • Mounting: Heavy-duty slipfitter for 2 3/8"OD pipe
  • Reflector: Specular vacuum-metallized polycarbonate
  • Gaskets: High-temperature silicone gaskets
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.

Optical

  • NEMA Type: NEMA Beam Spread of 6H x 6V

Other

  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Patents: The FXLED78 design is protected by U.S. Pat. D659,280, Canada Pat. 143155, China Pat. ZL201130443125.9, Mexico Pat. 36558 and pending patent in Taiwan.
  • Equivalency: Equivalent to 400W Metal Halide
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Overview

UPC 01981317597
GTiN 00019813175973
Color 5100K (5000K Cool)
Voltage 480 Volt
Type FLOODLIGHT
Weight 26.7 lb
Wattage 78 Watt
Color Temperature 5000 K
Color Accuracy 71 CRI
Lumens 10,780 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Average Rated Life 100,000 hr
Input Wattage 79.70 W
Power Factor 96.1% At 480V
Efficacy 135.3 LPW
Total Harmonic Distortion 8.85% At 480V
Applications OUTDOOR
