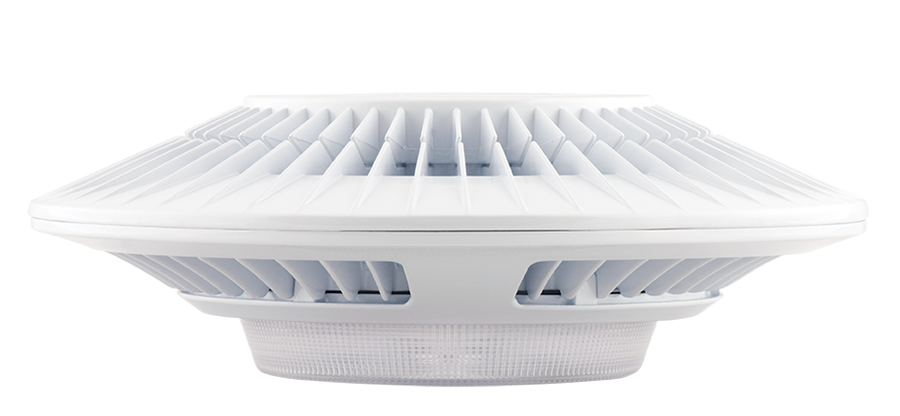

RAB GLED26W GARAGE CEILING 26W COOL
$676.90/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # GLED26W
North Coast Part # 1011836

Features

  • Low-profile design Ideal for Parking Garages
  • 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • Up to 25% Reduction in Fixture Count
  • Lock screw provided for pendant mount

Specifications

Performance

  • Watts: 26W
  • Color Temp: 5000K (Cool)
  • Lumens: 3,144
  • Efficacy: 116 lm/W
  • Color Accuracy: 74 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.30A
  • 208V: 0.17A
  • 240V: 0.15A
  • 277V: 0.13A
  • Input Watts: 27.10W

Dimensions

  • Weight: 16.4 lbs

Listings

  • UL Listing: Suitable for Wet Locations. Covered Ceiling Mount Only.
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: P000017A9

Construction

  • IP Rating: Ingress Protection rating of IP66 for dust and water
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
  • Thermal Management: Superior heat sinking with integrated air-flow fins
  • Housing: Precision die-cast aluminum housing and door frame
  • Mounting: Easy hanging plate with hooks for ceiling mount
  • Lens: Prismatic polycarbonate lens
  • Reflector: Semi-specular anodized aluminum with ultra-white, 97% reflective optics
  • Gaskets: High-temperature silicone
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • LEDs: High-output, long-life LEDs
  • Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Other

  • Patents: The design of GLED26 is protected by patents pending in US, Canada, China, Taiwan and Mexico
  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Optical

  • BUG Rating: B2 U3 G1

Electrical

  • Drivers: Constant Current, Class 2, 100V-277V, 50/60 Hz, 6kv Surge Protection, 720mA, 100-277VAC 0.4 Amps.
  • THD: 7.7% at 120V, 17.4% at 277V
  • Power Factor: 99.1% at 120V, 89.9% at 277V

Overview

UPC 01981320145
GTiN 00019813201450
Finish WHITE
Voltage 120-277 Volt
Type GARAGE/CANOPY
Applications OUTDOOR
Weight 16.4 lb
Wattage 26 Watt
Color Temperature 5000 K
Color Accuracy 74 CRI
Lumens 3,144 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Amperage 0.13 Amp
Average Rated Life 100,000 hr
Input Wattage 27.10 W
Power Factor 89.9% At 277V,99.1% At 120V
Efficacy 116 LPW
Total Harmonic Distortion 17.4% At 277V,7.7% At 120V
