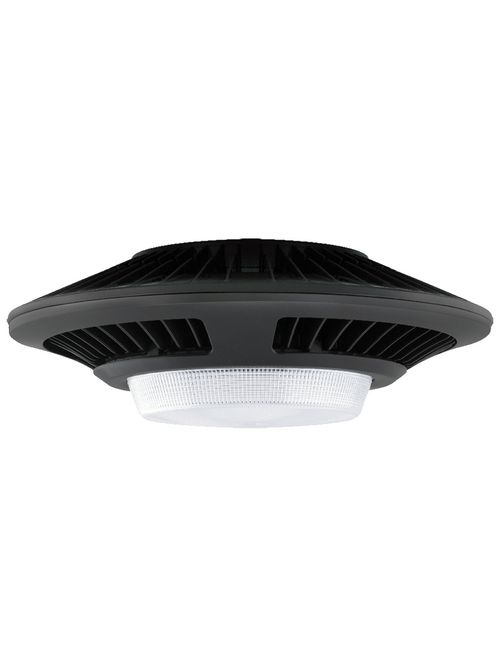

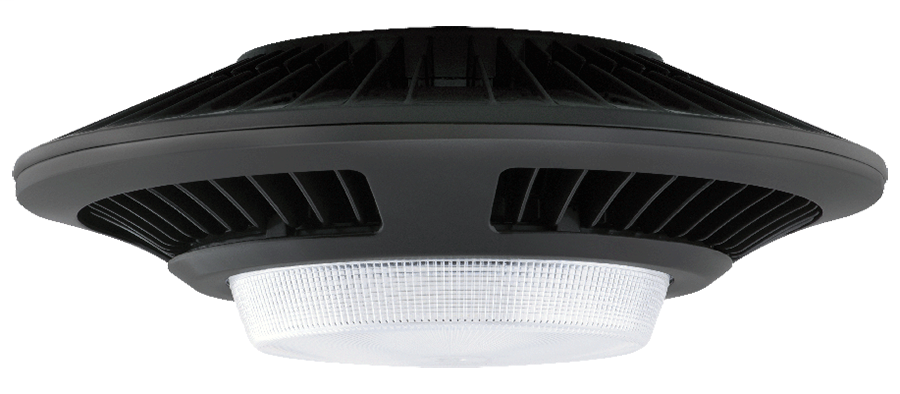

RAB GLED52 52 W 120/208/240/277 Volt 16 x 5-1/2 Inch Cool Bronze Die-Cast Aluminum LED Ceiling Mount Light Fixture
$676.90/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # GLED52
North Coast Part # 880395

Features

  • Low-profile design Ideal for Parking Garages
  • 52W Replaces 175W MH Luminaires
  • 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • Up to 25% Reduction in Fixture Count
  • Lock screw provided for pendant mount

Specifications

Performance

  • Watts: 52W
  • Color Temp: 5100K (Cool)
  • Lumens: 5,952
  • Efficacy: 108.6 lm/W
  • Color Accuracy: 74 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.49A
  • 208V: 0.31A
  • 240V: 0.27A
  • 277V: 0.24A
  • Input Watts: 54.80W

Dimensions

  • Weight: 16.9 lbs

Listings

  • UL Listing: Suitable for Wet Locations. Covered Ceiling Mount Only.
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: P00001713

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • LEDs: 4x13W high-output, long-life LEDs
  • Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
  • Housing: Precision die-cast aluminum housing and door frame
  • Mounting: Easy hanging plate with hooks for ceiling mount
  • Lens: Prismatic polycarbonate lens
  • Reflector: Specular vacuum-metallized polycarbonate with ultra-white, 97% reflective optics
  • Gaskets: High-temperature silicone
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.

Other

  • Patents: The design of GLED52 is protected by patents pending in US, Canada, China, Taiwan and Mexico
  • Equivalency: Equivalent to 175W Metal Halide
  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Optical

  • BUG Rating: B3 U3 G2

Electrical

  • Drivers: 2x26W Driver, Constant Current, Class 2, 100V-277V, 50/60 Hz, 6kv Surge Protection, 720mA, 100-277VAC 0.4 Amps.
  • THD: 8.1% at 120V, 16.6% at 277V
  • Power Factor: 99.1% at 120V, 90.9% at 277V

Overview

UPC 01981303873
GTiN 00019813038735
Finish Bronze
Voltage 120/277 Volt
Type GARAGE/CANOPY
Applications OUTDOOR
Weight 16.9 lb
Wattage 52 Watt
Color Temperature 5100 K
Color Accuracy 74 CRI
Lumens 5,952 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Fixture Type LED Garage Lights
Amperage 0.24 Amp
Average Rated Life 100,000 hr
Input Wattage 54.80 W
Power Factor 99.1% At 120V,90.9% At 277V
Efficacy 108.6 LPW
Total Harmonic Distortion 8.1% At 120V,16.6% At 277V
