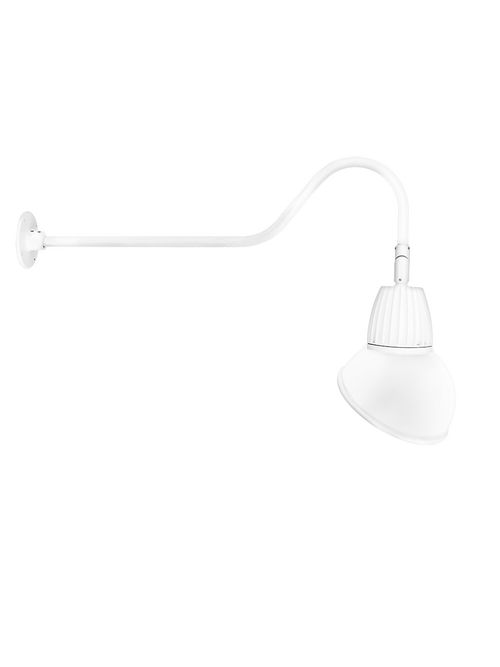

RAB GN2LED13NAD11W GOOSE 35" ARM 26

Features

• Adjustable 45° swivel joint
• Superior heat sink
• Die-cast aluminum housing
• 5-Year, No-Compromise Warranty

Specifications

Performance

• Watts: 13W
• Color Temp: 4000K (Neutral)
• Lumens: 589
• Efficacy: 38.2 lm/W
• Color Accuracy: 86 CRI
• L70 Lifespan: 100,000 hours
• Type: Constant Current
• 120V: 0.3A
• 208V: 0.3A
• 240V: 0.3A
• 277V: 0.15A
• Input Watts: 15.40W

Dimensions

• Weight: 14.0 lbs

Listings

• UL Listing: Suitable for wet locations. Suitable for mounting within 1.2m (4ft) of the ground.
• IESNA LM-79 & IESNA LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

LED Characteristics

• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
• LED: Single multi-chip, 13W high-output, long-life LED
• Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
• Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

• Fixture: The GN2LED13NAD11W comes with the GOOSE2W arm
• Housing: Precision die-cast aluminum housing, lens frame and mounting plate
• Gaskets: High-temperature Silicone
• Mounting: Heavy-duty mounting arm with "O" ring seal and stainless steel screw
• Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
• Shades: 11" Angled Dome Shade offered
• Finish: Formulated for high durability and long-lasting color
• Green Technology: Mercury and UV free. RoHS-compliant components.

Electrical

• Driver: Constant Current, Class 2, 100-277V, 50/60 Hz, 100-240VAC 0.3 - 0.15A, 277VAC 0.15A, THD ≤20%, PF 97.5%.
• Surge Protection: 4kV

Other

• Patents: The design of the Gooseneck is protected by patents pending in US, Canada, China and Taiwan
• Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
• Equivalency: Equivalent to 75W Incandescent, 50W Metal Halide or 18W CFL
• Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
