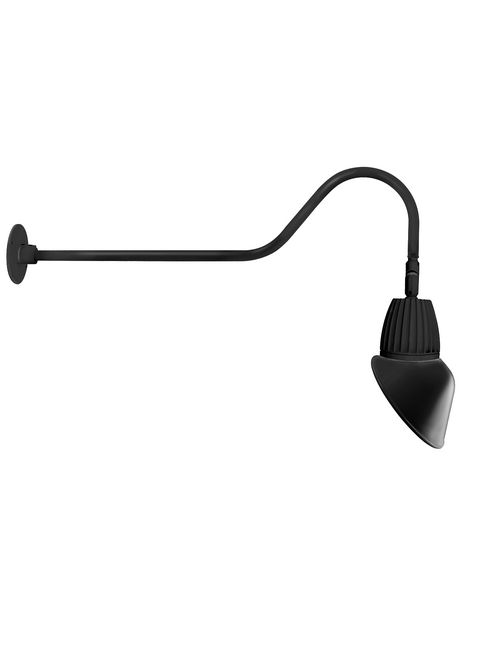

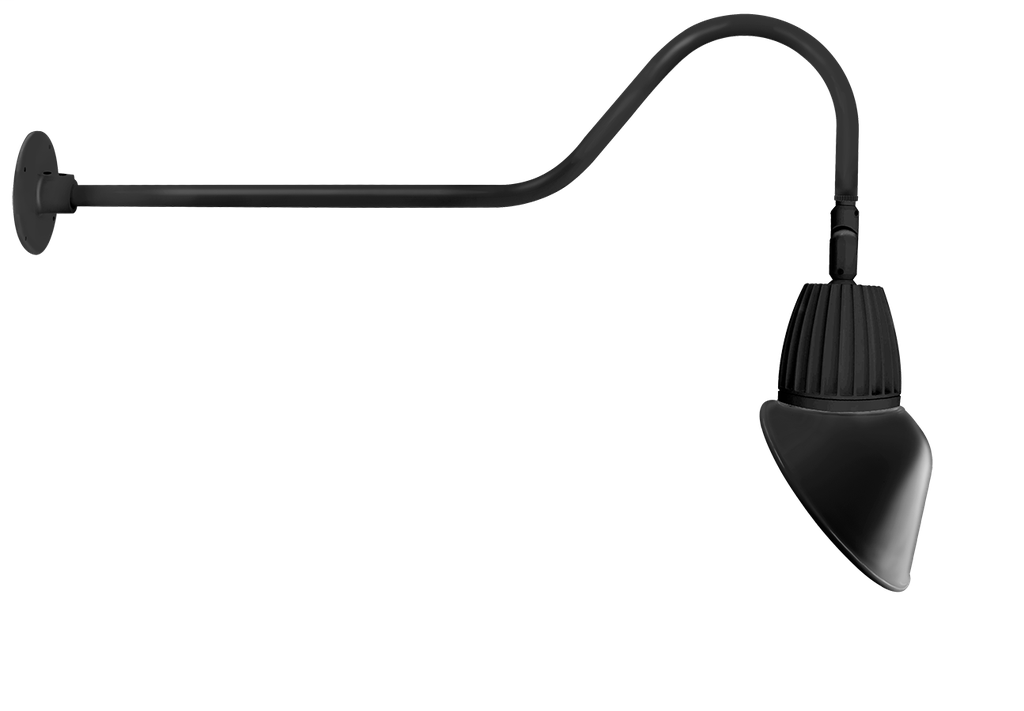

RAB GN2LED26NAC11B GOOSE 35" ARM 26
$559.30/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # GN2LED26NAC11B
North Coast Part # 1011223

Features

  • Adjustable 45° swivel joint
  • Superior heat sink
  • Die-cast aluminum housing
  • 5-Year, No-Compromise Warranty

Specifications

Performance

  • Watts: 26W
  • Color Temp: 4000K (Neutral)
  • Lumens: 877
  • Efficacy: 30.8 lm/W
  • Color Accuracy: 85 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.25A
  • 208V: 0.16A
  • 240V: 0.14A
  • 277V: 0.12A
  • Input Watts: 28.50W

Dimensions

  • Weight: 14.0 lbs

Listings

  • UL Listing: Suitable for wet locations. Suitable for mounting within 1.2m (4ft) of the ground.
  • IESNA LM-79 & IESNA LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • LED: Single multi-chip, 26W high-output, long-life LED
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

  • Fixture: The GN2LED26NAC11B comes with the GOOSE2B arm
  • Housing: Precision die-cast aluminum housing, lens frame and mounting plate
  • Gaskets: High-temperature Silicone
  • Mounting: Heavy-duty mounting arm with "O" ring seal and stainless steel screw
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Shades: 11" Angled Cone Shade offered
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.

Electrical

  • Driver: Constant Current, Class 2, 100-277V, 50/60 Hz, 0.48 A, THD≤20%, PF 97.9%.
  • Surge Protection: 4kV

Other

  • Patents: The design of the Gooseneck is protected by patents pending in US, Canada, China and Taiwan
  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Equivalency: Equivalent 120W Incandescent, 75W Metal Halide or 42W CFL
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Overview

UPC 01981316066
GTiN 00019813160665
Color 4000K (4000K Neutral)
Voltage 120-277 Volt
Type GOOSENECK
Applications LED Gooseneck
Weight 14.0 lb
Wattage 26 Watt
Color Temperature 4000 K
Color Accuracy 85 CRI
Lumens 877 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Amperage 0.25 Amp
Average Rated Life 100,000 hr
Input Wattage 28.50 W
Efficacy 30.8 LPW
