RAB GUS2-25NW/D10 GUS 2FT 25W 4000K
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # GUS2-25NW/D10
North Coast Part # 1340224

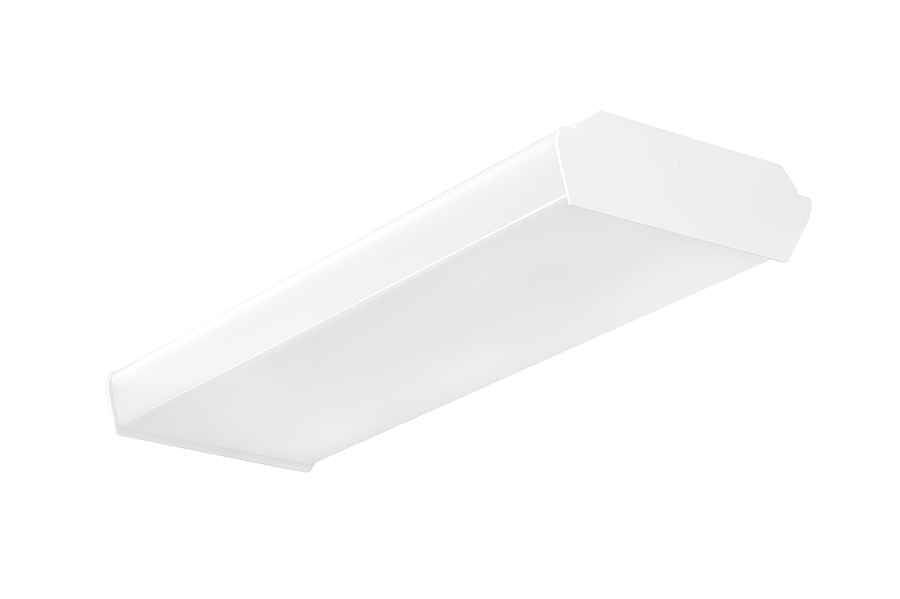

  • Energy-efficient, maintenance-free LED wrap fixture
  • Multiple mounting options: surface, pendant or chain
  • High-reflectance white finish for optimal output
  • Diffusion wrap-around lens for smooth light distribution
  • 0-10V dimming standard
  • 100,000-Hour LED lifespan



  • Watts: 25W
  • Color Temp: 4000K (Neutral)
  • Lumens: 2,757
  • Efficacy: 106.4 lm/W
  • Color Accuracy: 84 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.21A
  • 208V: 0.14A
  • 240V: 0.12A
  • 277V: 0.11A
  • Input Watts: 25.90W


  • Weight: 9.3 lbs


  • UL Listing: Suitable for damp locations
  • DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: PKJN9TZ1

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • Color Stability: LED Color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.


  • Driver: Class 2, Constant Current, 100-277VAC, 50-60Hz, 4kV, 120V: 0.21A, 208V: 0.14A, 240V: 0.12A,, 277V: 0.11A
  • Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
  • THD: 9.2% at 120V, 15.7% at 277V
  • Power Factor: 98.9% at 120V, 88.2% at 277V
  • Minimum Starting Temperature: -30°C to 40°C


  • Housing: Die-formed 22 gauge, cold-rolled, post-painted steel. Post painting improves durability of the finish and eliminates the sharp edges making handling and installation safer.
  • Mounting: Surface mount. Can be mounted with chains or v-hooks by others.
  • Lens: Acrylic lens with diffusion for enhanced optical performance
  • Reflector: Aluminum with high-reflectance (91%) powder coat applied post production for a more durable finish
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.


  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Equivalency: Equivalent to (1) F32T8
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.


UPC 01981342416
Item Long Description Surface Wrap 2Ft 25W, 4000k, 0-10V, Dimmable, 120-277V, White
GTiN 00019813424163
Finish WHITE
Voltage 120-277 Volt
Applications INDOOR
Weight 9.3 lb
Wattage 25 Watt
Color Accuracy 84 CRI
Lumens 2757 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Amperage 0.11 Amp
Average Rated Life 100,000 hr
Input Wattage 25.90 W
Power Factor 88.2% At 277V,98.9% At 120V
Efficacy 106.4 LPW
Total Harmonic Distortion 15.7% At 277V,9.2% At 120V
