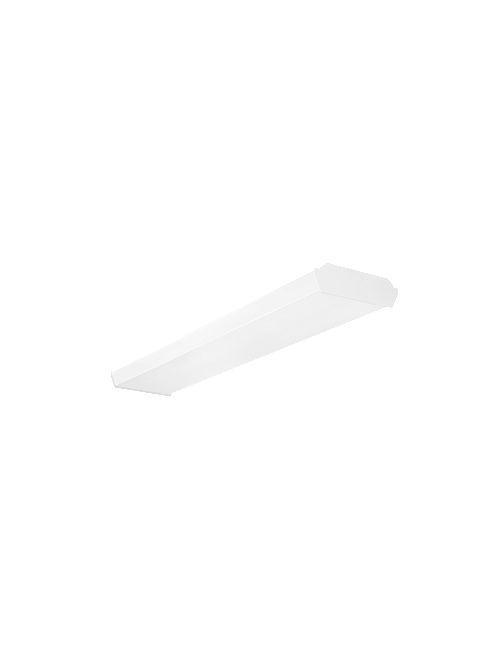

RAB GUS4-36NW/D10/E2 SURF WRAP 4FT

Features

• Energy-efficient, maintenance-free LED wrap fixture
• Multiple mounting options: surface, pendant or chain
• High-reflectance white finish for optimal output
• Diffusion wrap-around lens for smooth light distribution
• 0-10V dimming standard
• 100,000-Hour LED lifespan

Specifications

Performance

• Watts: 36W
• Color Temp: 4000K (Neutral)
• Lumens: 4,437
• Efficacy: 117.1 lm/W
• Color Accuracy: 83 CRI
• L70 Lifespan: 100,000 hours
• Type: Constant Current
• 120V: 0.31A
• 208V: 0.19A
• 240V: 0.17A
• 277V: 0.14A
• Input Watts: 37.90W

Dimensions

• Weight: 17.9 lbs

Listings

• UL Listing: Suitable for damp locations
• DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: PWJ8PHRN

LED Characteristics

• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
• Color Stability: LED Color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
• Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Electrical

• Driver: Class 2, Constant Current, 100-277VAC, 50-60Hz, 4kV, 120V: 0.31A, 208V: 0.19A, 240V: 0.17A,, 277V: 0.14A
• Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
• THD: 11.0% at 120V, 14.6% at 277V
• Power Factor: 99.3% at 120V, 94.3% at 277V
• Minimum Starting Temperature: 0° to 40°C
• Battery Backup: Emergency battery backup will operate the fixture for 90 minutes if power fails. Wired for 120-277V.

Construction

• Housing: Die-formed 22 gauge, cold-rolled, post-painted steel. Post painting improves durability of the finish and eliminates the sharp edges making handling and installation safer.
• Mounting: Surface mount. Can be mounted with chains or v-hooks by others.
• Lens: Acrylic lens with diffusion for enhanced optical performance
• Reflector: Aluminum with high-reflectance (91%) powder coat applied post production for a more durable finish
• Finish: Formulated for high durability and long-lasting color
• Green Technology: Mercury and UV free. RoHS-compliant components.

Other

• Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
