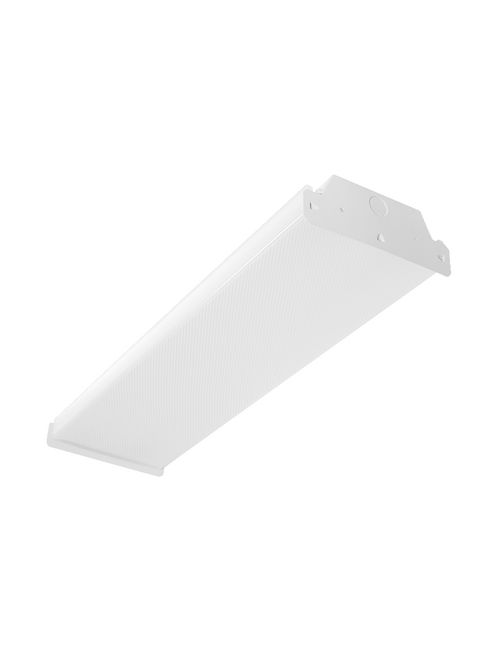

RAB GUSJR2-20-835WU GUS JUNIOR 2FT

Features

• Affordable, easy to use LED wrap fixture
• 0-10V dimming standard
• 50,000-Hour LED lifespan

Specifications

Performance

• Watts: 20W
• Color Temp: 3500K (Warm Neutral)
• Lumens: 2,527
• Efficacy: 114.3 lm/W
• Color Accuracy: 83 CRI
• L70 Lifespan: 50,000 hours
• Type: Constant Current
• 120V: 0.19A
• 208V: 0.11A
• 240V: 0.10A
• 277V: 0.09A
• Input Watts: 22.10W

Dimensions

• Weight: 5.1 lbs

Listings

• UL Listing: Suitable for damp locations
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
• DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: PL280Q05

Electrical

• Driver: Class 2, Constant Current, 100-277VAC, 50-60Hz, 2.5kV, 120V: 0.19A, 208V: 0.11A, 240V: 0.10A, 277V: 0.09A
• THD: 9.1% at 120V, 9.6% at 277V
• Power Factor: 99.3% at 120V, 93% at 277V
• Dimmable: Driver includes dimming control for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.

LED Characteristics

• Lifespan: 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
• LEDs: Long-life, high-efficiency, surface mount LEDs
• Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

• Cold Weather Starting: The minimum starting temperature is -20°C (-4°F)
• Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
• Housing: Sheet metal stamping 24 gauge, cold-rolled steel
• Reflector: Sheet metal forming 24 gauge, cold-rolled steel with white powder coat
• Lens: Prismatic Acrylic Lens
• Mounting: Surface mount. Can be mounted with v-hooks (ordered separately).
• Finish: Formulated for high durability and long-lasting color
• Green Technology: Mercury and UV free. RoHS-compliant components.

Other

• 5 Yr Limited Warranty: The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at
• Equivalency: Equivalent to (1) F32T8
• Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
