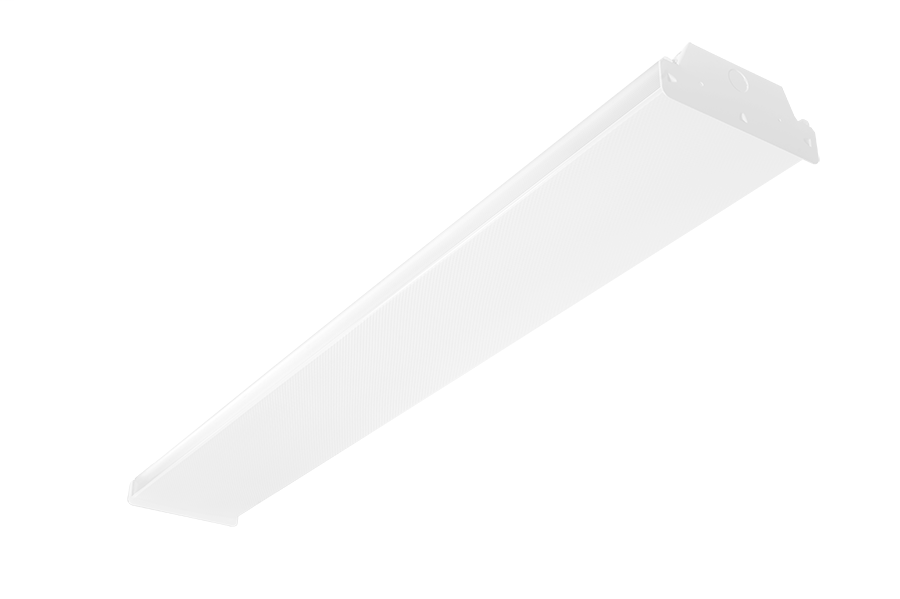

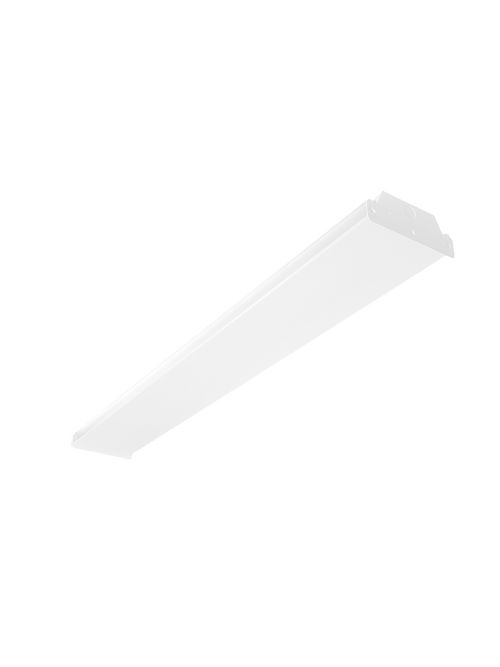

RAB GUSJR4-40-835WU GUS JUNIOR 4FT
$140.08/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # GUSJR4-40-835WU
North Coast Part # 1680084

Features

  • Affordable, easy to use LED wrap fixture
  • 0-10V dimming standard
  • 50,000-Hour LED lifespan

Specifications

Performance

  • Watts: 40W
  • Color Temp: 3500K (Warm Neutral)
  • Lumens: 4,662
  • Efficacy: 115.7 lm/W
  • Color Accuracy: 83 CRI
  • L70 Lifespan: 50,000 hours
  • Type: Constant Current
  • 120V: 0.34A
  • 208V: 0.21A
  • 240V: 0.19A
  • 277V: 0.15A
  • Input Watts: 40.30W

Dimensions

  • Weight: 9.0 lbs

Listings

  • UL Listing: Suitable for damp locations
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: PL280Q05

Electrical

  • Driver: Class 2, Constant Current, 100-277VAC, 50-60Hz, 2.5kV, 120V: 0.34A, 208V: 0.21A, 240V: 0.19A, 277V: 0.15A
  • THD: 5.3% at 120V, 5.9% at 277V
  • Power Factor: 99.7% at 120V, 95.1% at 277V
  • Dimmable: Driver includes dimming control for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.

LED Characteristics

  • Lifespan: 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • LEDs: Long-life, high-efficiency, surface mount LEDs
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

  • Cold Weather Starting: The minimum starting temperature is -20°C (-4°F)
  • Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
  • Housing: Sheet metal stamping 24 gauge, cold-rolled steel
  • Reflector: Sheet metal forming 24 gauge, cold-rolled steel with white powder coat
  • Lens: Prismatic Acrylic Lens
  • Mounting: Surface mount. Can be mounted with v-hooks (ordered separately).
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.

Other

  • 5 Yr Limited Warranty: The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at
  • Equivalency: Equivalent to (4) F32T8
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Overview

UPC 01981370845
GTiN 00019813708454
Finish WHITE
Voltage 120/277 Volt
Type GENERAL PURPOSE
Applications INDOOR
Mounting Type Surface
Weight 9.0 lb
Wattage 40 Watt
Color Temperature 3500 K
Color Accuracy 83 CRI
Lumens 4,662 lm
Family Brand Name Rab Design Lighting
Dimmable? Driver Includes Dimming Control For 0-10V Dimming Systems. Requires Separate 0-10V DC Dimming Circuit. Dims As Low As 10%.
Amperage 0.34 Amp
Average Rated Life 50,000 hr
Input Wattage 40.30 W
Power Factor 99.7% At 120V,95.1% At 277V
Efficacy 115.7 LPW
Total Harmonic Distortion 5.3% At 120V,5.9% At 277V
