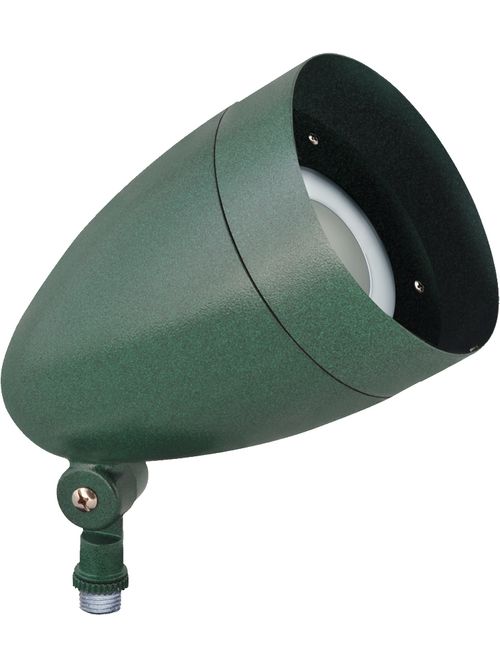

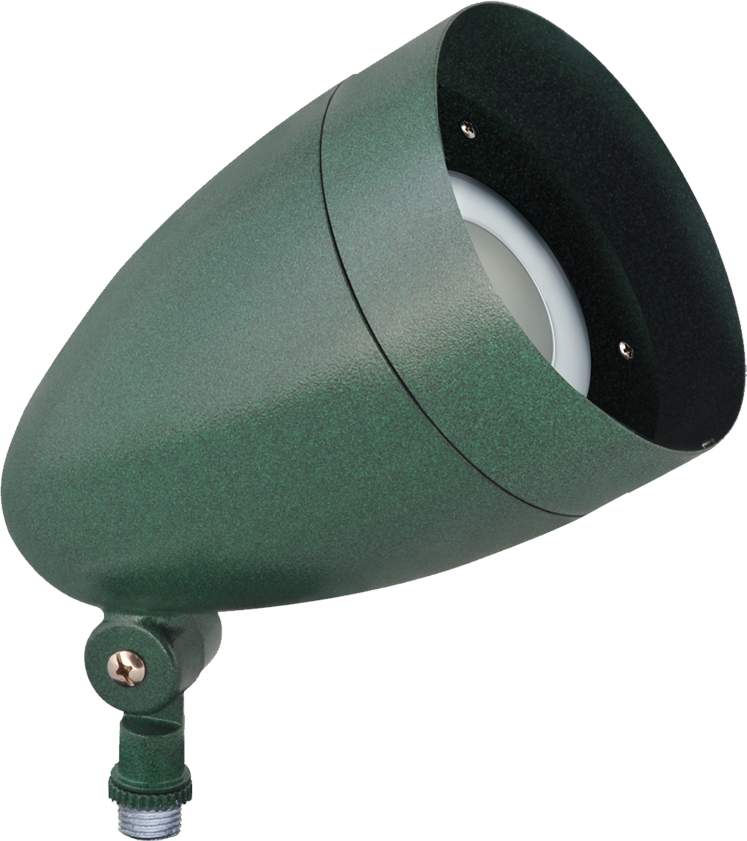

RAB HBLED13DCVG LFLOOD 13W COOL 12V

Features

• Low voltage DC
• Ideal for solar applications
• Up to 85% more energy efficient
• No energy-loss from DC-AC inverter
• Enables off-grid, remote-area lighting
• 5-Year, No-Compromise Warranty

Specifications

Performance

• Watts: 13W
• Color Temp: 5000K (Cool)
• Lumens: 724
• Efficacy: 47.3 lm/W
• Color Accuracy: 61 CRI
• L70 Lifespan: 100,000 hours
• Type: DC to DC
• Input Watts: 15.30W

Dimensions

• Weight: 3.5 lbs

LED Characteristics

• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
• LEDs: Multi-chip 13 watt, high-output, long-life LEDs
• Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
• Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
• Color Temperature: 5000K
• Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Electrical

• Electrical Input Specifications: Max Watts = 15W. Input Volts = 10-30 VDC. Operating Amps = 1.5 - 0.5A.

Construction

• Cold Weather Starting: The minimum starting temperature is -30°C (-22°F)
• Housing: Die-cast aluminum housing, hood and mounting arm
• Swivels: Fully adjustable with sure-grip locks. 1/2" NPS threaded arm with serrated locking swivel fits all standard mounting covers. Color matched EZ Grip lock nuts. Stainless steel screw.
• Mounting: Heavy-duty arm with "O" ring seal and stainless steel screws
• Gaskets: High-temperature silicone gaskets
• Finish: Formulated for high durability and long-lasting color
• Green Technology: Mercury and UV free. RoHS-compliant components.

Optical

• Reflector: Specular aluminum. NEMA 5x5 floodlight reflector with 4x4 optional spotlight reflector for field installation. Photometrics show flood configuration.

Listings

• IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Other

• Patents: The design of the LFLOOD is protected by US patents pending in US., Canada, China, Taiwan & Mexico.
• Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
• Equivalency: Equivalent to 100W PAR Halogen
• Equipment: Solar panel, battery and controls by others
• Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
