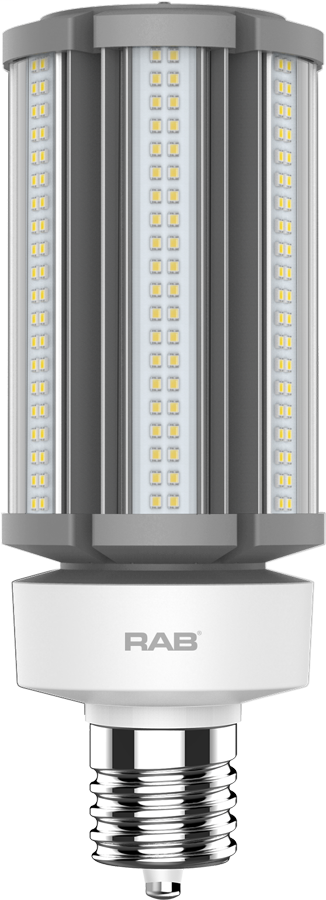

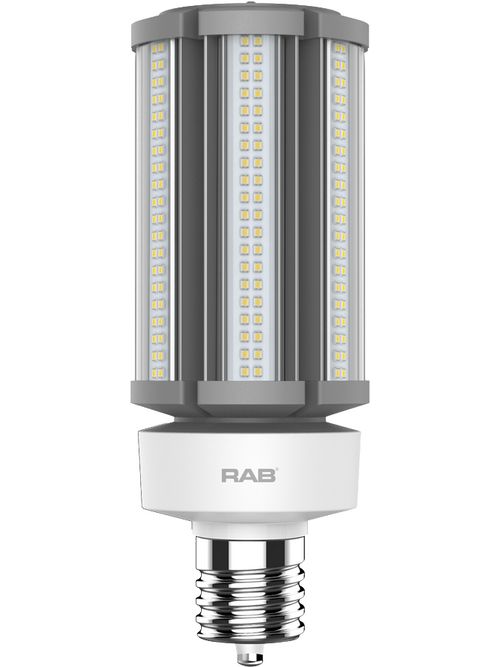

RAB HID-54-EX39-850-BYP-PT HID PST

Features

• HID REPLACEMENT - Replace conventional HID lamps
• BALLAST BYPASS - Internal driver eliminates the need for external driver or ballast
• COMPACT DESIGN - Allows the lamp to fit in most fixtures
• INSTALLATION ORIENTATION - Lamps can be installed universally: base up, down or sideways
• HEAT DISSIPATION - Thermal technology extends lifespan
• WATER & DUST RESISTANT - Ideal for outdoor fixtures
• ENCLOSED FIXTURE RATED - May be used in enclosed and open fixtures
• INSTANT ON - No warmup time required, full brightness instantly
• SURGE PROTECTION - Includes 4kV surge protection

Specifications

Performance

• Watts: 54W
• Color Temp: 5000K (Daylight)
• Lumens: 8,100
• Efficacy: 150 lm/W
• Color Accuracy: 80 CRI
• L70 Lifespan: 50,000 hours
• Input Voltage: 100-277V
• Power Factor: 0.9
• Flicker: <30%

Dimensions

• Weight: 1.7 lbs

Technical Specifications

• Product Type: HID
• Bulb Shape: Post Top
• Wattage: 54W
• Wattage Equivalency: 200W HID
• Typical Lumen Output: 8100
• Efficacy: 150 lm/W
• Color Temperature: 5000K Daylight
• CRI: 80
• Base Type: EX39
• L70 Lifespan: 50,000 hours
• Operating Temperature: -30°C - 60°C
• Dimmable: No
• Beam Angle: 360°
• Warranty: 5-Year, No-Compromise Warranty
• Installation Type: Type B, Ballast Bypass
• Installation Orientation: Universal Installation
• For Use in Emergency Fixtures: No
• For Use Outdoors in Open Fixtures: Yes

Electrical Characteristics

• Input Voltage: 100-277V
• Power Factor: 0.9
• Operating Frequency: 50 / 60 Hz
• Flicker: <30%
• THDi: <20%

Listings

• UL Listed: Yes
• UL Classified: Yes
• DLC Product Code: PVW3QUIF
• CEC Status: Lawful for sale in California
