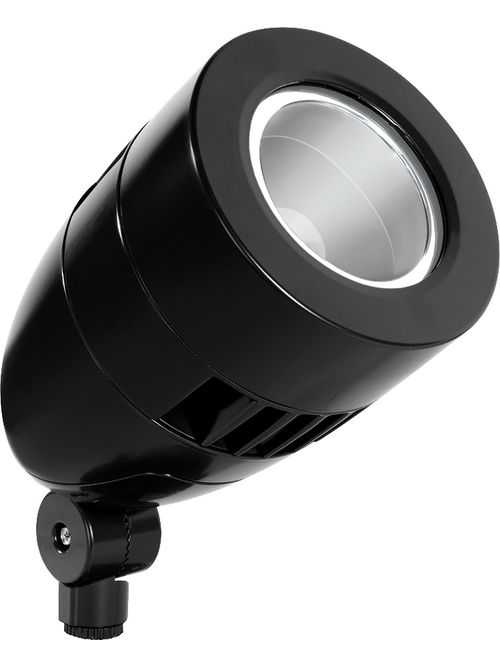

RAB HNLED13YB/D10 LFLOOD 13W 3KLED
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$615.29/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # HNLED13YB/D10
North Coast Part # 1903354

Features

  • 80% energy savings vs. PAR floods
  • Mount on junction box or on RAB Mighty Post
  • Patent-pending "Air-Flow" technology
  • 5-Year, No-Compromise Warranty

Specifications

Performance

  • Watts: 13W
  • Color Temp: 3000K (Warm)
  • Lumens: 1,514
  • Efficacy: 110.5 lm/W
  • Color Accuracy: 70 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.12A
  • 208V: 0.09A
  • 240V: 0.08A
  • 277V: 0.07A
  • Input Watts: 13.70W

Dimensions

  • Weight: 4.6 lbs

Listings

  • UL Listing: Suitable for wet locations. Suitable for ground mounting.
  • IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: PH3F5RIR

Optical

  • NEMA Type: NEMA Beam Spread of 2H x 2V

LED Characteristics

  • LEDs: Multi-chip, high-output, long-life LEDs
  • Color Stability: RAB LEDs exceed industry standards for chromatic stability
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Thermal Management: Superior heat sinking with external Air-Flow fins
  • Housing: Precision die-cast aluminum housing, lens frame and mounting arm
  • Reflector: Semi-specular, vacuum-metalized polycarbonate
  • Mounting: Heavy-duty mounting arm with "O" ring seal & stainless steel screws
  • Gaskets: High-temperature silicone gaskets
  • Finish: Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.

Electrical

  • Driver: Multi-chip 13W high output long life LED Driver Constant Current, 100V - 277V, 50/60 Hz
  • Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
  • THD: 12.63% at 120V
  • Power Factor: 97.8% at 120V

Other

  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Overview

UPC 01981319826
Item Long Description LFLOOD 13W 3000K LED DIM NARROW REF HBLED BL
GTiN 00019813198262
Finish Polyester Powder Coating
Voltage 120/277 Volt
Type FLOODLIGHT
Applications OUTDOOR
Mounting Type Ground
Weight 4.6 lb
Wattage 13 Watt
Color Temperature 3000 K
Color Accuracy 70 CRI
Lumens 1514 lm
Family Brand Name Rab Design Lighting
Amperage 0.07 Amp
Average Rated Life 100,000 hr
Input Wattage 13.70 W
Power Factor 97.8% At 120V
Efficacy 110.5 LPW
Total Harmonic Distortion 12.63% At 120V
