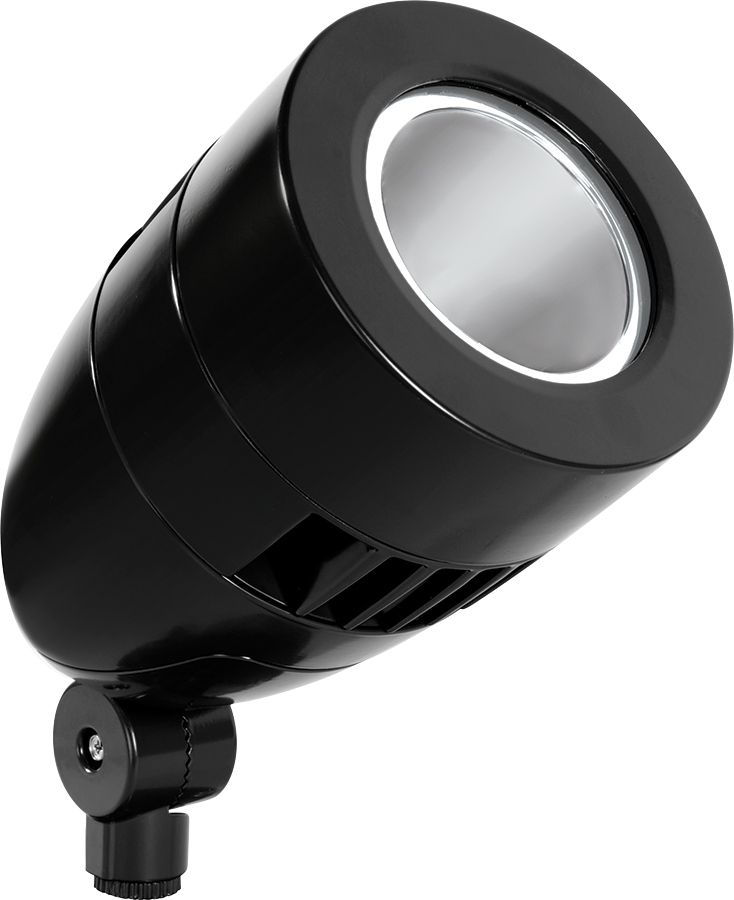

RAB HSLED13B 13 W 120/208/240/277 Volt 5-5/8 x 8-1/2 Inch Cool Black Die-Cast Aluminum LED Floodlight Fixture
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # HSLED13B
North Coast Part # 763268


  • Spot lighting for over 40 feet away
  • Perfect for flag lighting
  • NEMA type - 3H x 3V
  • Available in four colors
  • 100,000-hour life based on LM-80 results and TM-21 calculations
  • 5-Year, No-Compromise Warranty



  • Watts: 13W
  • Color Temp: 5100K (Cool)
  • Lumens: 1,502
  • Efficacy: 96.3 lm/W
  • Color Accuracy: 72 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.12A
  • 208V: 0.09A
  • 240V: 0.08A
  • 277V: 0.07A
  • Input Watts: 15.60W


  • Weight: 3.5 lbs


  • UL Listing: Suitable for wet locations. Suitable for ground mounting.
  • IESNA LM-79 & IESNA LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: PSEHVPID

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • LEDs: 13 Watt high output, long-life LED
  • Lumen Maintenance: 100,000 hours Life Based on LM-80 Tests
  • Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.


  • Spotlight Distribution: Beam Angle of 11° and Field Angle of 24° enables the HSLED to produce a very narrow spot distribution
  • NEMA Type: NEMA Beam Spread of 3H x 3V


  • Driver: Constant Current, Class 2, 100-277V, 50-60Hz, 100-240VAC 0.3-0.15A, 277VAC 0.15A.
  • THD: 8.71% at 120V, 17.66% at 277V
  • Power Factor: 99.1% at 120V, 89.6% at 277V
  • Surge Protection: 4kV


  • Ambient Temperature: Suitable For use in 40°C (104°F)
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Thermal Management: Cast aluminum Thermal Management system for optimal heat sinking. The HSLED is designed for cool operation, most efficient output and maximum LED life by minimizing LED junction temperature.
  • Housing: Precision die-cast aluminum housing, hood and mounting arm
  • Gaskets: High-temperature Silicone
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.


  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Patents: The design of the HSLED is protected by Taiwan Patent 01510965 and patents pending in US, Canada, China, and Mexico
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.


UPC 01981333128
Item Long Description LFlood, 13W, 5000k, LED Spot Bullet With Hood & Lens, Black
GTiN 00019813331287
Voltage 100-240 Volt
Weight 3.5 lb
Wattage 13 Watt
Color Accuracy 72 CRI
Lumens 1502 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Amperage 0.07 Amp
Average Rated Life 100,000 hr
Input Wattage 15.60 W
Power Factor 89.6% At 277V,99.1% At 120V
Efficacy 96.3 LPW
Total Harmonic Distortion 17.66% At 277V,8.71% At 120V
Applications OUTDOOR
