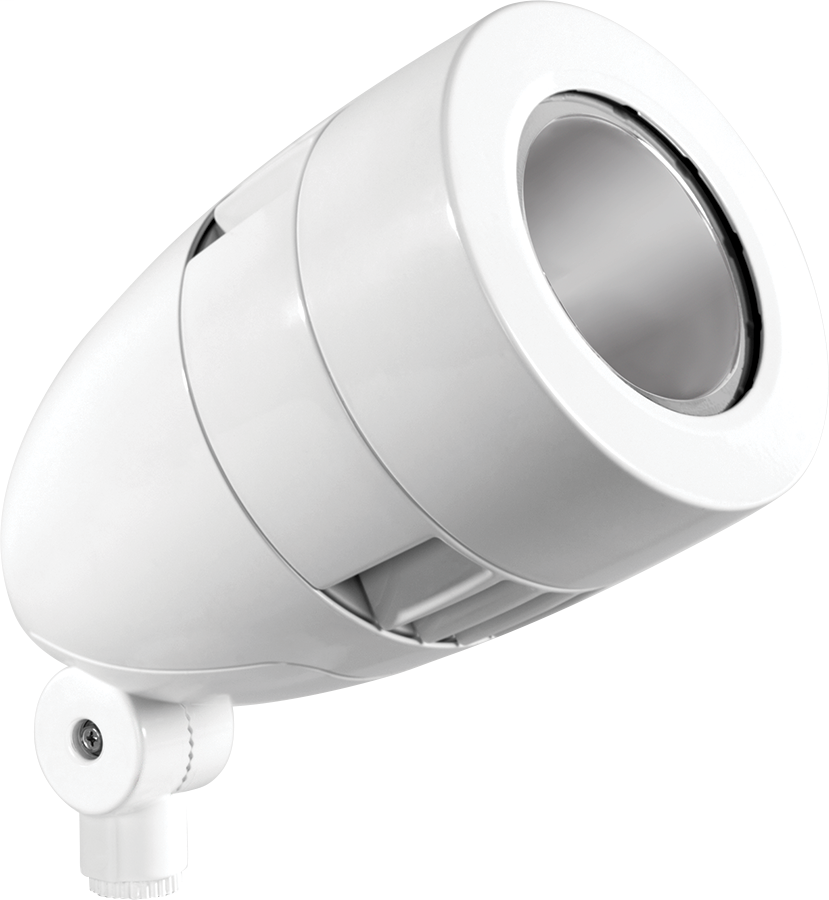

RAB HSLED13DCW LFLOOD SPOT 13W DC C

Features

• Low voltage DC
• Ideal for solar applications
• Up to 85% more energy efficient
• No energy-loss from DC-AC inverter
• Enables off-grid, remote-area lighting
• 5-Year, No-Compromise Warranty

Specifications

Performance

• Watts: 13W
• Color Temp: 5100K (Cool)
• Lumens: 1,373
• Efficacy: 96 lm/W
• Color Accuracy: 67 CRI
• L70 Lifespan: 100,000 hours
• Type: DC to DC
• Input Watts: 14.30W

Dimensions

• Weight: 3.5 lbs

LED Characteristics

• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
• LEDs: 13 Watt high output, long-life LED
• Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
• Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
• Color Temperature (Nominal CCT): 5000K
• Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Electrical

• Electrical Input Specifications: Max Watts = 15W. Input Volts = 10-30 VDC. Operating Amps = 1.5 - 0.5A.
• Surge Protection: 4kV

Optical

• Spotlight Distribution: Beam Angle of 11° and Field Angle of 24° enables the HSLED to produce a very narrow spot distribution
• NEMA Type: NEMA Beam Spread of 2H x 2V

Construction

• Cold Weather Starting: The minimum starting temperature is -30°C (-22°F)
• Housing: Precision die-cast aluminum housing, hood and mounting arm
• Reflector: Specular Aluminum
• Finish: Formulated for high durability and long-lasting color
• Green Technology: Mercury and UV free. RoHS-compliant components.

Listings

• IESNA LM-70 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Other

• Patents: The design of the LFLOOD is protected by US patents and patents pending in Canada, China, Taiwan & Mexico
• Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
• Equipment: Solar panel, battery and controls by others
• Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
