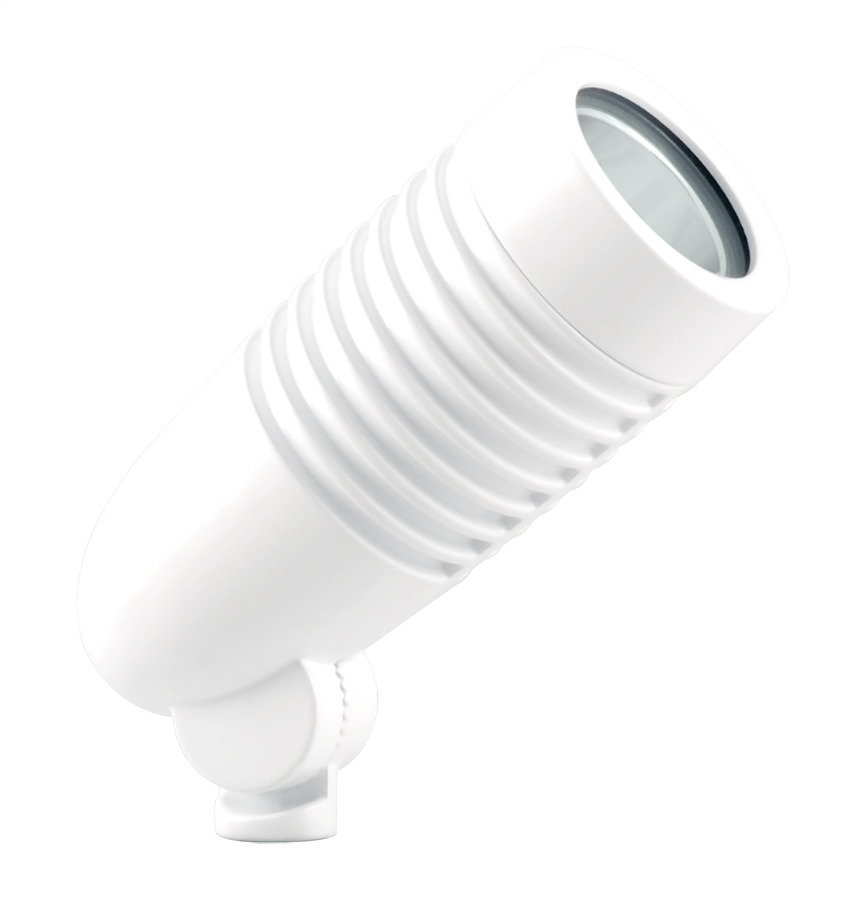

RAB LFLED5NDCW LFLOOD 5W NEUT 12V 2

Features

• Low voltage DC
• Ideal for solar applications
• Up to 85% more energy efficient
• No energy-loss from DC-AC inverter
• Enables off-grid, remote-area lighting
• 5-Year, No-Compromise Warranty

Specifications

Performance

• Watts: 5W
• Color Temp: 4000K (Neutral)
• Lumens: 208
• Efficacy: 40.8 lm/W
• Color Accuracy: 90 CRI
• L70 Lifespan: 100,000 hours
• Type: DC to DC
• Input Watts: 5.10W

Dimensions

• Weight: 1.5 lbs

Listings

• UL Listing: Suitable for wet locations. Suitable for ground mounting.
• IESNA LM-79 & IESNA LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

LED Characteristics

• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
• Lumen Maintenance: 100,000 hours Life Based on LM-80 Tests
• Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
• Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
• Color Temperature (Nominal CCT): 4000K
• Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.

Optical

• Spot Lens: Optional spot lens enables a tool-less conversion to an 18° NEMA 3x3 spot. Great for accent lighting or grazing buildings for an artistic touch.
• NEMA Type: 4H x 4V with 44° beam angle

Construction

• Lens: Microprismatic diffusion lens for smooth and even light distribution
• Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
• Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
• Housing: Precision die-cast aluminum housing, hood and mounting arm
• Gaskets: High-temperature Silicone
• Finish: Formulated for high durability and long-lasting color
• Green Technology: Mercury and UV free. RoHS-compliant components.

Other

• Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
• Patents: The design of the LFLED is protected by Taiwan Patent 01510966 and pending patents in US, Canada, China, and Mexico
• Equipment: Solar panel, battery and controls by others
• Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Electrical

• Driver: Constant Current, Class 2, 100-240V, 50-60Hz, 100-240VAC 0.18A.
