Manufacturer RAB Lighting
Mfg Catalog # LFLED8YB
North Coast Part # 1090478


  • Microprismatic diffuser produces a smooth distribution and low glare
  • 4H x 4V NEMA beam spread
  • Optional spot and narrow spot hood reflectors available
  • Runs cool; prevents burning foliage or fingers
  • 5-Year, No-Compromise Warranty



  • Watts: 8W
  • Color Temp: 3000K (Warm)
  • Lumens: 511
  • Efficacy: 71 lm/W
  • Color Accuracy: 83 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.14A
  • 208V: 0.09A
  • 240V: 0.08A
  • Input Watts: 7.20W


  • Weight: 1.5 lbs


  • UL Listing: Suitable for wet locations. Suitable for ground mounting.
  • IESNA LM-79 & IESNA LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

LED Characteristics

  • LED: High-output, long-life LED
  • Color Consistency: 4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.


  • Spot Lens: Optional spot lens enables a tool-less conversion to a NEMA Type 3H x 3V. Great for accent lighting or grazing buildings for an artistic touch.
  • Narrow Spot Lens: Optional narrow spot lens enables a tool-less conversion to a NEMA Type 3H x 3V. Great for accent lighting or grazing buildings for an artistic touch.


  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Ambient Temperature: Suitable for 40°C (104°F)
  • Thermal Management: Optimized using computational fluid dynamics software to ensure long LED and driver lifespan
  • Housing: Precision die-cast aluminum, lens frame and mounting arm
  • Lens: Microprismatic diffuser produces a smooth distribution and low glare
  • Gaskets: High-temperature silicone
  • Finish: Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contains no VOC or toxic heavy metals
  • Green Technology: Mercury and UV free. RoHS-compliant components.


  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Patents: The design of the LFLED is protected by Taiwan Patent 01510966 and pending patents in US, Canada, China, and Mexico
  • Equivalency: Equivalent to 2 x 50W MR16
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.


  • Driver: Constant Current, Class 2, 50/60 Hz, 100-240VAC: 0.20Amps


UPC 01981322129

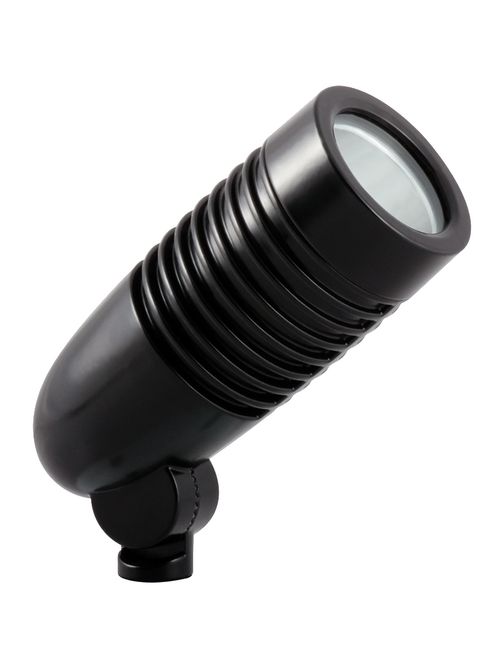

Item Long Description LFlood, 8W, 3000k, LED Landscape Flood, LfLED, Black
GTiN 00019813221298
Finish Polyester Powder Coating
Voltage 120 Volt
Applications OUTDOOR
Weight 1.5 lb
Wattage 8 Watt
Color Temperature 3000 K
Color Accuracy 83 CRI
Lumens 511 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Fixture Type LED Landscape Floodlight
Amperage 0.08 Amp
Average Rated Life 100,000 hr
Input Wattage 7.20 W
Efficacy 71 LPW
Color Black
