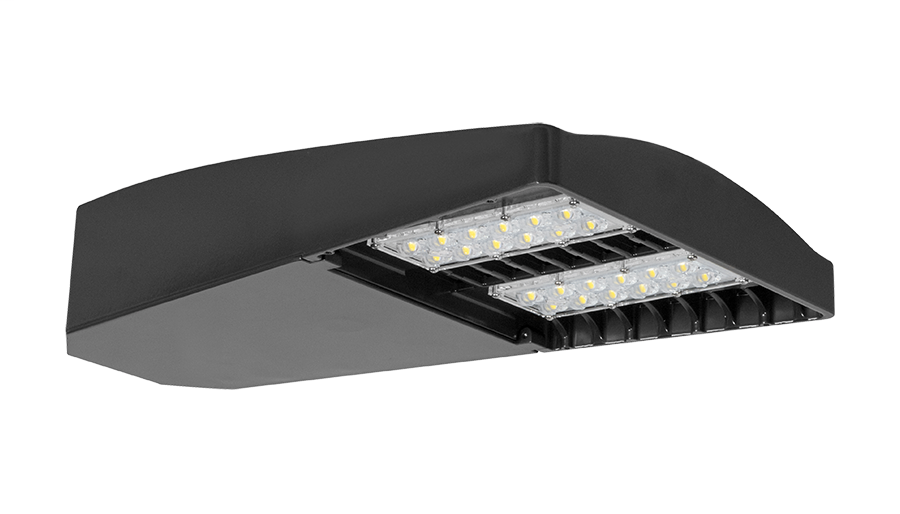

RAB LOT4T110N/480/D10 LOTBLASTER T
$974.91/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # LOT4T110N/480/D10
North Coast Part # 1830853

Features

  • 100,000-hour LED lifespan
  • Type IV distribution

Specifications

Performance

  • Watts: 110W
  • Color Temp: 4000K (Neutral)
  • Lumens: 11,572
  • Efficacy: 102.7 lm/W
  • Color Accuracy: 72 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0
  • 208V: 0
  • 240V: 0
  • 277V: 0
  • Input Watts: 112.70W

Dimensions

  • Weight: 20.9 lbs

Listings

  • UL Listing: Suitable for wet locations
  • IESNA LM-79 & IESNA LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • Dark Sky Conformance: Conforms to (allows for conformance to) the IDA's fully shielding requirement, emitting no light above 90 degrees (with the exclusion of incidental light reflecting from fixture housing, mounts, and pole).
  • DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: PCMCK55G

Electrical

  • Driver: Constant Current, Class 2, 480V, 50/60 Hz, 480V: 0.26A
  • Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
  • THD: 14.2% at 480V
  • Power Factor: 92.3% at 480V
  • Surge Protection: 4kV

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • LEDs: Long-life, high-efficacy surface mount LEDs
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

  • IES Classification: The Type IV distribution (also known as a Forward Throw) produces a semicircular distribute, and is especially suited for mounting on sides of buildings or walls and perimeter of parking areas
  • Effective Projected Area: EPA = 0.8
  • Vibration Rating: Industry-leading 5G vibration rating per ANSI C136.31
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Ambient Temperature: Suitable For use in 40°C (104°F)
  • Housing: Precision die-cast aluminum housing
  • Mounting: Mounts to RAB square poles. Mounts to all square and round poles if optional Universal Pole Adaptor is used.
  • Lens: Clear acrylic lens with integrated optics
  • IP Rating: Ingress Protection rating of IP66 for dust and water
  • Gaskets: High-temperature silicone gaskets
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.

Other

  • 5 Yr Limited Warranty: Fixture operation and paint finish are covered for a period of 5-years.
  • Equivalency: Equivalent to 400W Pulse Start Metal Halide
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Optical

  • Full Cutoff: Full-cutoff optics conform with dark sky requirements

Categories

Overview

UPC 01981352923
GTiN 00019813529233
Finish Bronze
Voltage 480 Volt
Type AREA Light
Applications OUTDOOR
Weight 20.9 lb
Wattage 110 Watt
Color Accuracy 72 CRI
Lumens 11,572 lm
Family Brand Name Rab Design Lighting
Average Rated Life 100,000 hr
Input Wattage 112.70 W
Power Factor 92.3% At 480V
Efficacy 102.7 LPW
Total Harmonic Distortion 14.2% At 480V
Color Bronze
