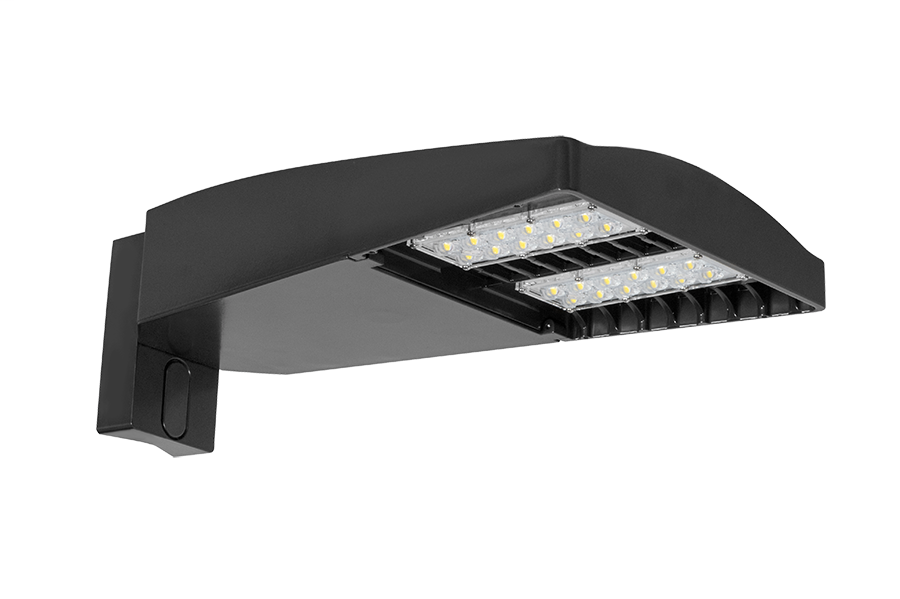

RAB LOT4T160N/D10/UPA/5PR LOTBLST T
$987.61/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # LOT4T160N/D10/UPA/5PR
North Coast Part # 1830856

Features

  • 100,000-hour LED lifespan
  • Type IV distribution

Specifications

Performance

  • Watts: 160W
  • Color Temp: 4000K (Neutral)
  • Lumens: 15,934
  • Efficacy: 100.9 lm/W
  • Color Accuracy: 72 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 1.35A
  • 208V: 0.83A
  • 240V: 0.72A
  • 277V: 0.61A
  • Input Watts: 157.90W

Dimensions

  • Weight: 20.9 lbs

Listings

  • UL Listing: Suitable for wet locations
  • IESNA LM-79 & IESNA LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • Dark Sky Conformance: Conforms to (allows for conformance to) the IDA's fully shielding requirement, emitting no light above 90 degrees (with the exclusion of incidental light reflecting from fixture housing, mounts, and pole).
  • DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: PRU1Q839

Electrical

  • Driver: Constant Current, Class 2, 100-277V, 50/60 Hz, 120V: 1.35A, 208V: 0.83A, 240V: 0.72A, 277V: 0.61A
  • Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
  • THD: 7.8% at 120, 14.3% at 277V
  • Power Factor: 99.5% at 120V, 93.5% at 277V
  • 5-Pin Receptacle: ANSI C136.41 5-pin receptacle, compatible with wireless control systems
  • Surge Protection: L-N 4kV; L-L, L-GND 6kV

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • LEDs: Long-life, high-efficacy surface mount LEDs
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

  • IES Classification: The Type IV distribution (also known as a Forward Throw) produces a semicircular distribute, and is especially suited for mounting on sides of buildings or walls and perimeter of parking areas
  • Effective Projected Area: EPA = 0.8
  • Vibration Rating: Industry-leading 5G vibration rating per ANSI C136.31
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Ambient Temperature: Suitable For use in 40°C (104°F)
  • Housing: Precision die-cast aluminum housing
  • Mounting: Mounts to RAB square poles. Mounts to all square and round poles if optional Universal Pole Adaptor is used.
  • Lens: Clear acrylic lens with integrated optics
  • IP Rating: Ingress Protection rating of IP66 for dust and water
  • Gaskets: High-temperature silicone gaskets
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.

Other

  • Compatibility: Compatible with Round Poles with a diameter of 2.5" to 6"
  • 5 Yr Limited Warranty: Fixture operation and paint finish are covered for a period of 5-years.
  • Equivalency: Equivalent to 575W Pulse Start Metal Halide
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Optical

  • Full Cutoff: Full-cutoff optics conform with dark sky requirements

Categories

Overview

UPC 01981357058
GTiN 00019813570587
Finish Bronze
Voltage 120/277 Volt
Type AREA Light
Applications OUTDOOR
Mounting Type Pole
Weight 20.9 lb
Wattage 160 Watt
Color Temperature 4000 K
Color Accuracy 72 CRI
Lumens 15,934 lm
Family Brand Name Rab Design Lighting
Amperage 0.61 Amp
Average Rated Life 100,000 hr
Input Wattage 157.90 W
Power Factor 93.5% At 277V,99.5% At 120V
Efficacy 100.9 LPW
Total Harmonic Distortion 14.3% At 277V,7.8% At 120
Color Bronze
